Dual 2.5A R/C Switch This is a miniature DUAL RC switch for handling loads up to 2.5A per switch. The control of these switches are unique in that they only need a single channel to operate both switches. The state of each switch depends on the position of the stick (or the programmed lever position on the transmitter). When the switch is closed, the supply voltage (absolute max is 6.0V) appears across the positive and negative output pins. This is suitable for driving strobes, high-bright LEDs, lights, smoke systems, or 5V relays. Can be configured as a single RC switch if needed.
An RC Servo lead (6" long) is already soldered to this unit- you do not need to do any soldering! Connector is universal Futaba/JR style. Simple to set up, read the data sheet for further information. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RCE200 R/C Solid State D-Switch Arguably the most popular radio-controlled switch interface out there! Use this tiny (less than 1/3 oz!) RCE200 to plug into your RC receiver, and turn something up to 60VDC on and off. Great for remotely-operating some of our smaller solenoids or relays. Small dip-switches provide four threshold positions with an LED to aid in setup. Fault detection safely switches off load if receiver signal is lost - doubles as a failsafe! Powered by R/C receiver drawing only 13ma. Switched load is optically isolated from R/C circuit. An RC Servo lead (10" long) is already soldered to this unit- you only need to solder on your input/output wires! Price reflects the addition of this servo lead. Connector is universal Futaba/JR style. Select from two different models depending on your voltage/current-handling requirements (Do not exceed ratings, so choose your model carefully):
Simple to set up, read the data sheet for further information. One 3/4" piece of clear heat shrink tubing (included) is a great way to insulate your RCE200. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RCE210 R/C Relay Switch When you need to switch a higher load than what the RCE200 can handle, use this RCE210 to plug into your RC receiver, and turn something on and off. Great for remotely-operating some of our larger solenoids or relays. Switch up to 24 amps on and off with one receiver channel. Four stick threshhold positions, or simply activate with a swtich from your radio. The RCE210 has diagonal mounting holes for #6 machine screws. Relay connections are via 0.25" spade terminals (included).
An RC Servo lead (10" long) isalready soldered to this unit- you do not need to do any soldering! Price reflects the addition of this servo lead. Connector is universal Futaba/JR style. Simple to set up, read the data sheet for further information. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
RCE220 R/C Dual-Ended Switch Switch two things on and off with one transmitter stick! Using only one channel output from your RC receiver, you can drive two independent motors, contactors, or pneumatic/hydraulic solenoids. Great for remotely-operating some of our larger solenoids or relays. Plus, a simple wiring configuration also converts this to a mechanical H-bridge which is perfect for running a single linear actuator or motor in both forward/off/reverse. When used with an actuator, optional inputs from limit switches permit you to arrest motion in either direction. Silver cadmium oxide relay contacts. Maximum motor/coil load: 12 amps at 30 volts DC inductive. Fault detection safely switches off both relays if receiver signal is lost.
An RC Servo lead (10" long) isalready soldered to this unit- you only need to solder on your input/output wires. Price reflects the addition of this servo lead. Connector is universal Futaba/JR style. Simple to set up, read the data sheet for further information. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|

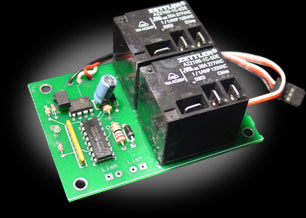

RCE225 R/C Bigger Dual-Ended Switch The bigger brother to the RCE220, for when you need to swtich higher currents (up to 24 amps) Switch two things on and off with one transmitter stick! Using only one channel output from your RC receiver, you can drive two independent motors, contactors, or pneumatic/hydraulic solenoids. Great for remotely-operating some of our larger solenoids or relays. Plus, a simple wiring configuration also converts this to a mechanical H-bridge which is perfect for running a single linear actuator or motor in both forward/off/reverse. When used with an actuator, optional inputs from limit switches permit you to arrest motion in either direction. Fault detection safely switches off both relays if receiver signal is lost. Relay connections are via 0.25" spade terminals (included).
An RC Servo lead (10" long) is already soldered to this unit- you do not need to do any soldering! Price reflects the addition of this servo lead. Connector is universal Futaba/JR style. Simple to set up, read the data sheet for further information. |
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
GWS

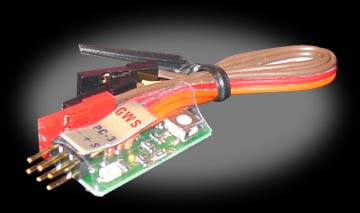

PC-3 Gyro Switch The GWS PC03 In-Flight Gyro Switch allows your gyro to be turned on or off with your transmitter. This item also works as a bypass or RC switch for any R/C item. Simply activate it to apply or remove signal for just about anything hooked to a receiver (Speed controller, servo, etc) Dimensions:
27 x 12.5 x 7 mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
