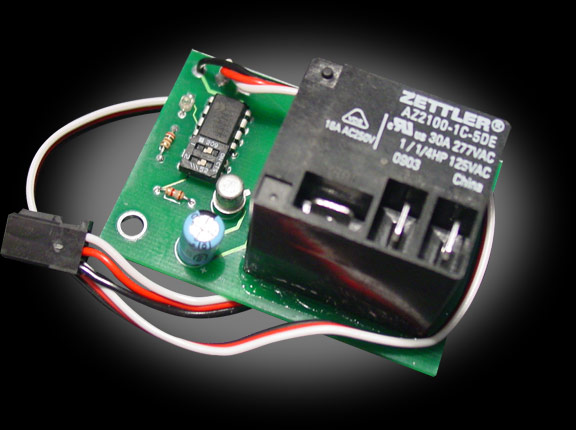

0-TD-RCE210 RCE210 RC Relay Switch <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">When you need to switch a higher load than what the RCE200 can handle,
use this RCE210 to plug into your RC receiver,
and turn something on and off. Great for remotely-operating some
of our larger <a href="dc_power_solenoids.html" target="_top">solenoids</a> or <a href="dc_relays.html" target="_top">relays</a>. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Switch
up to 24 amps on and off with one receiver channel. Four stick threshhold
positions, or simply activate with a swtich from your radio.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
RCE210 has diagonal mounting holes for #6 machine screws. Relay connections
are via 0.25&quot; spade terminals (included).</font></p>
<table width="300" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="92">&nbsp;</td>
<td width="202"><div align="center"><b><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RCE210</font></b>
</div>
<div align="center"><b><font size="2" face="Arial, Helvetica, sans-serif"></font></b></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.75&quot;
x 2.50&quot; x 1.25&quot; </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.59
oz with RC cable </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Supply
voltage</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4.1
- 5.5 VDC</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Supply
current</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif"> 20ma
standby, 220ma when energized </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Switching
time</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif"> 8.0
milliseconds </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Load
rating</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">24
amps at 30V DC </font></div></td>
</tr>
</table>
<p align="left"><font size="2" face="Arial, Helvetica, sans-serif"><font size="2" face="Arial, Helvetica, sans-serif"><font color="#FFFF00">An
RC Servo lead</font></font><font color="#FFFF00"> (10&quot; long) <font size="2" face="Arial, Helvetica, sans-serif">is </font><b>already
soldered</b> to
this unit- you do not need to do any soldering! </font><font color="00ff66">Price
reflects the addition of this servo lead. Connector is
universal Futaba/JR style. </font></font></p>
