Check out the crimper for these connectors! |
|

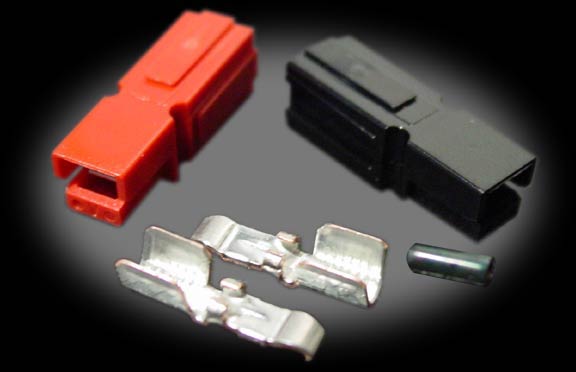

45
Amp PowerPole Connectors
For
use with 10 - 14 gauge wire
Each set contains one Red housing, one Black housing, two Contacts,
and one Roll Pin. (as pictured)
Housing
size is .97" x .31" x .31"
Need
extra contacts? We sell them separately as
well.
Note: the plastic housings are all the same size for 45, 30 & 15
amp PowerPoles.
Specifications
Housing
Measurements
Contact
Measurements
Compare

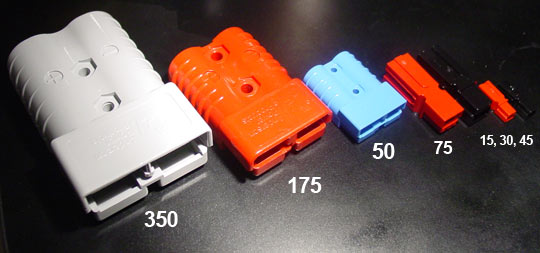

PowerPole sizes:  |
|
|
click
any picture for large view
| |
|
|
Check
out the crimper for these
connectors! |
|

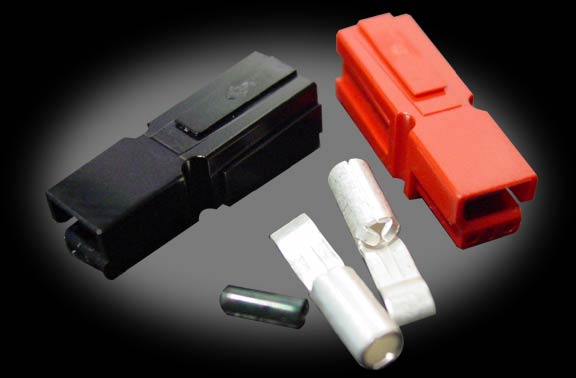

30
Amp PowerPole Connectors
For use with 12 - 16 gauge wire
Each set contains one Red housing, one Black housing, two Contacts,
and one Roll Pin. (as pictured)
Housing
size is .97" x .31" x .31"
Need
extra contacts? We sell them separately as
well.
Note: the plastic housings are all the same size for 45, 30 & 15
amp PowerPoles.
Specifications
Housing
Measurements
Contact
Measurements
Compare
PowerPole sizes: |
|
|
| |
|
|
Check
out the crimper for these
connectors! |
|

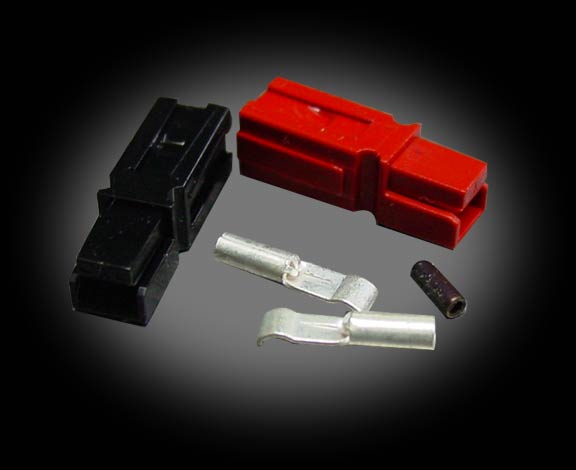

15
Amp PowerPole Connectors
For
use with 16 - 18 gauge wire
Each set contains one Red housing, one Black housing, two Contacts,
and one Roll Pin. (as pictured)
Housing
size is .97" x .31" x .31"
Note: the plastic housings are all the same size for 45, 30 & 15
amp PowerPoles.
Specifications
Housing
Measurements
Contact
Measurements
Compare
PowerPole sizes: |
|
|
|

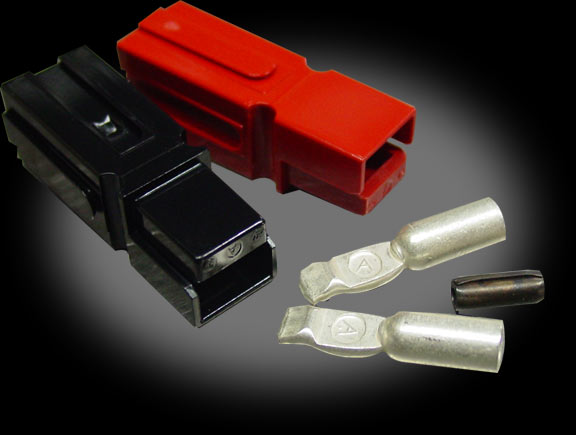

75
Amp PowerPole Connectors
These
are the BIG connectors- Almost 2 inches long! By popular demand.
For
use with 6, 8 OR 10 gauge wire (select which contacts you need)
Each set contains one Red housing, one Black housing, two Contacts, and
one Roll Pin. (as pictured)
Housing
size is 1.88" x .62" x .62"
Specifications
Housing
Measurements
6
ga Contact Measurements
8
ga Contact Measurements
Compare
PowerPole sizes: |
|
|
2 housings pictured;
a connector set is 1 Housing and 2 Contacts.
|

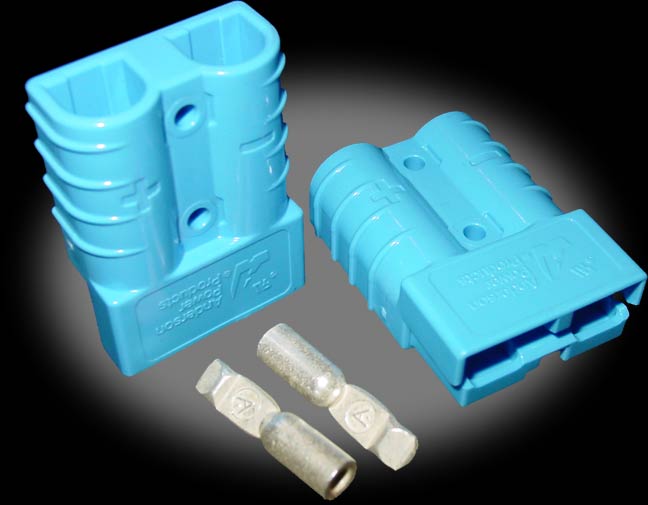

50
Amp SB Dual PowerPole Connector Set
Big connectors
for use with 8-10 gauge wire
Each connector set contains ONE housing (for two contacts) and TWO contacts.
Light blue only.
Housing
size is 1.89" x .62" x 1.44"
Great
for constructing a removable master power link for your bot!
Specifications
Housing
Measurements
Contact
Measurements
Compare
PowerPole sizes: |
|
|
2 sets pictured;
a connector set is 1 Housing and 2 Contacts.
|

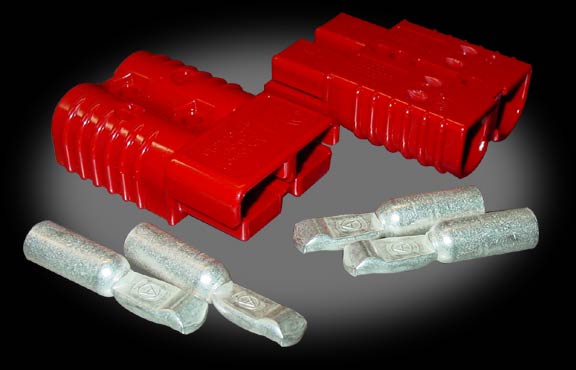

175
Amp SB Dual PowerPole Connector Set
For
when you need some big connectors!
connectors
for use with huge 4-6 gauge wire
Each connector set contains ONE housing (for two contacts) and TWO contacts.
Red only.
Housing
size is 2.18" x .76" x 3.13"
Great
for constructing a removable master power link for your BIG robot!
Specifications
Housing
Measurements
2ga
Contact Measurements
4ga
Contact Measurements
Compare
PowerPole sizes: |
|
|
2 Housings pictured;
a connector set is 1 Housing and 2 Contacts.
|

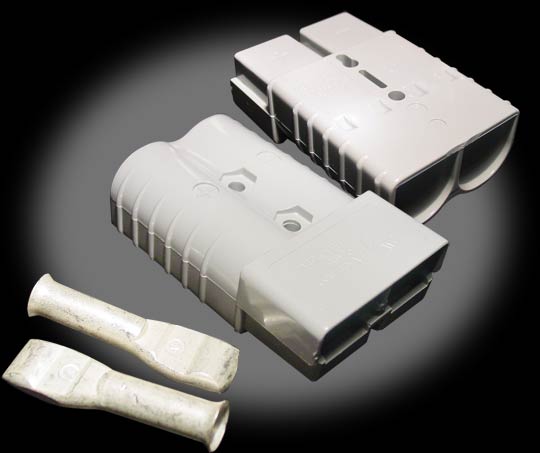

350
Amp SB Dual PowerPole Connector Set
These
are the HUGE ones!
Powerpole
connectors for use with huge 1/0 gauge wire
Each connector contains ONE housing (for two contacts) and TWO contacts.
Red only.
Housing
size is 4.24" x 1.35 " x 2.79 "
Great
for constructing a removable master power link for your BIG robot!
Specifications
Housing
Measurements
1ga
Contact Measurements
Compare
PowerPole sizes: |
|
|
|

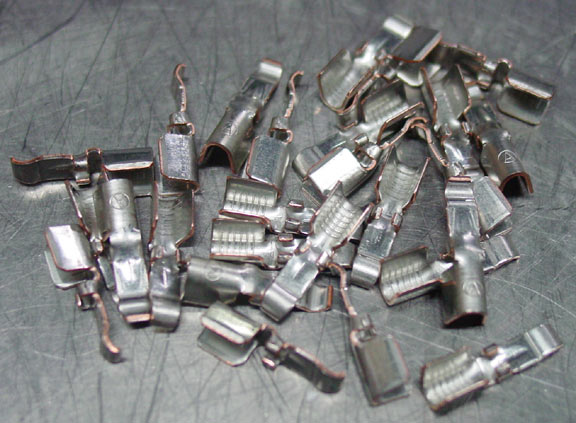

45
Amp PowerPole Extra Contacts
Spare contacts if you already have the plastic housings.
For
use with 10 - 14 gauge wire
|
Contact
Measurements |
|
|
|

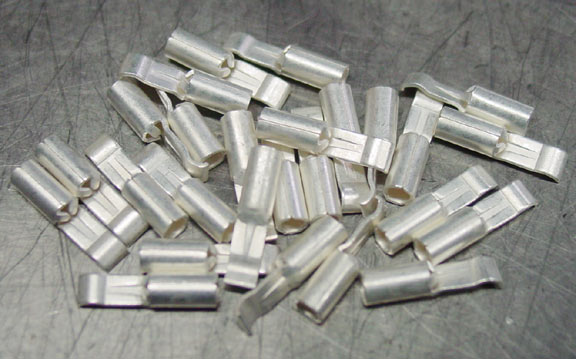

30
Amp PowerPole Extra Contacts
Spare contacts if you already have the plastic housings.
For use
with 12 - 16 gauge wire
| Contact
Measurements |
|
|
|
15
Amp PowerPole Extra Contacts
Spare contacts if you already have the plastic housings.
For
use with 16 - 18 gauge wire
|
Contact
Measurements |
|
|
|

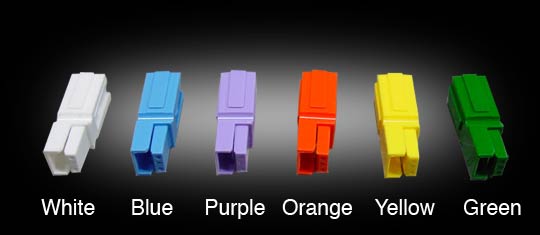

Extra
PowerPole Housings - Assorted Colors
These
fit both the 30 and 45 amp PowerPole contacts.
Select
the housing color you need. Choose from White, Blue, Purple, Orange, Yellow
or Green- as well as the 'original flavors', red and black.
Sold
individually, not in sets. Minimum order of 5 please- mix or match
colors.
Housing
Measurements |
|
|
|
|

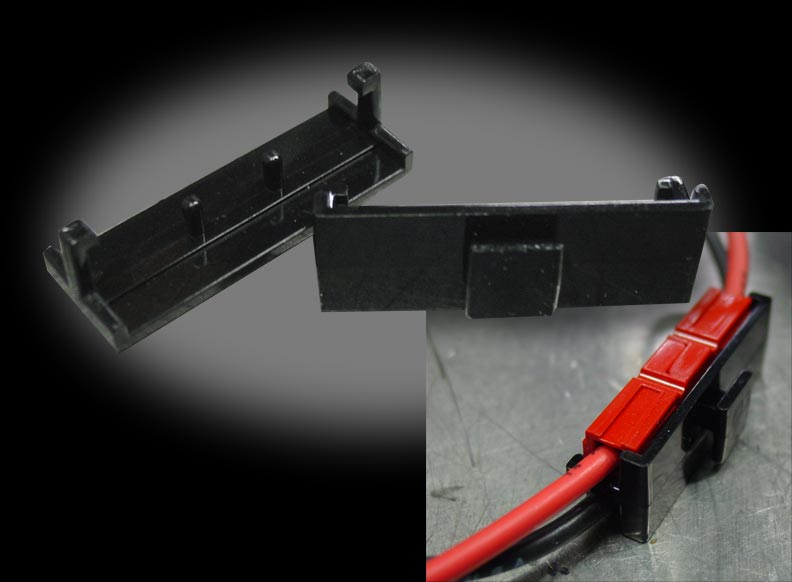

Blok-Lok
PowerPole clamps
An ultra-secure
method of connecting two sets of PowerPoles to each other, ensuring they
won't come apart in a high-vibration/high impact environment.
Fits
all 15, 30 and 45 Amp PowerPole connectors.
One clamp
is all you need to connect 2 sets (4 individual) PowerPoles.
BLOK-LOK
Measurements |
|
|
