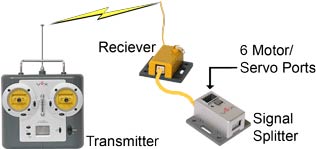

VEX-276-2217 VEX Robotics Signal Splitter <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The VEX Signal Splitter is a 'no brainer'. This control component can be used to drive up to six (6) PWM devices, including <a href="VEX-276-2163.html" target="_top">VEX Continuous Rotation Motors</a> and <a href="VEX-276-2162.html" target="_top">VEX Servos</a>. Since this device is capable of directly taking the signal output from the VEX Receiver Module and driving motors/servos, it is now possible to build robots without the VEX Microcontroller. This module is not programmable and must be used with the <a href="0-276-2153.html" target="_top">VEX Transmitter and Receiver</a>.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Input Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VEX Receiver Output, must be used with the VEX Transmitter and Receiver </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Outputs</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 PWM outputs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 x 2 x 1 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.14 lbs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="VEX-230-0036.html" target="_top">7.2V VEX Battery required</a> (not included) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Connectors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Pigtail for mating with the VEX Reeiver only; 7.2V VEX Battery Connector; 6 VEX Keyed PWM Outputs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounts identical to the VEX Receiver Module, hardware not included </font></td>
</tr>
</table>

VEX Robotics Signal Splitter
This control component can be used to drive up to six (6) PWM devices, including VEX Continuous Rotation Motors and VEX Servos.

$19.99
Robot MarketPlace - VEX Robotics Signal Splitter

Robot Kits
    VEX Control

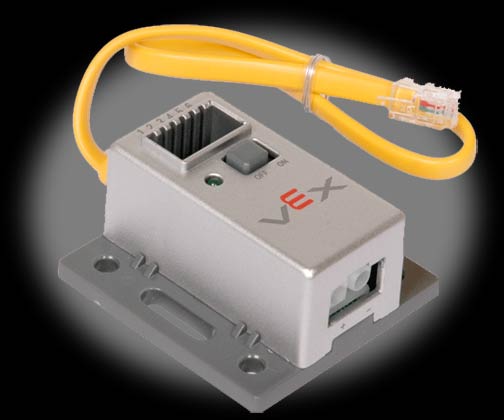

Click photo to enlarge.

VEX Robotics Signal Splitter
Part# VEX-276-2217



(average customer rating)

$19.99
This Product Has Been Discontinued
Stock Status: Removed
