0-276-2153 VEX Robotics Transmitter and Receiver <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Adds
functionality to your Vex robot by adding new possibilities. This kit includes a VEX 75MHz Transmitter and Receiver pair. Provides the radio control link which allows human operators direct control of a VEX robot. Transmitter is a 6-channel (4-analog, 2-digital) hobby grade FM unit, custom configured for VEX. Will
not interfere with the channel of your Vex Starter Kit. Allows you
to have two human operators control different functions of the same
robot. </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Channel 89, 75.970 MHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">TX Battery Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 AA batteries (not included), or <a href="VEX-230-0036.html" target="_top">VEX Robotics Power Pack</a> </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 (4 Analog and 2 Digital) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Analog Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 potentiometers, each with an X and Y axis</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 momentary switches (located on the backside)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">TX Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 x 8 x 2.5 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">TX Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.63 lbs. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RX Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.05 lbs. </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Trasmitter Unit </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Transmitter frequency module - channel 89 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RF receiver module </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver crystal - channel 89 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver antenna sleeve </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver antenna sleeve holder </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Keps nuts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-32 x 3/8" Screws</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9" RJ-10 cable, interconnect between the RF receiver module and VEX Micro Controller</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Inventor's Guide Insert </font></td>
</tr>
</table>

VEX Robotics Transmitter and Receiver
Adds functionality to your Vex robot by adding new possibilities.

$129.99
Robot MarketPlace - VEX Robotics Transmitter and Receiver

Robot Kits
    VEX Control


Click photo to enlarge.

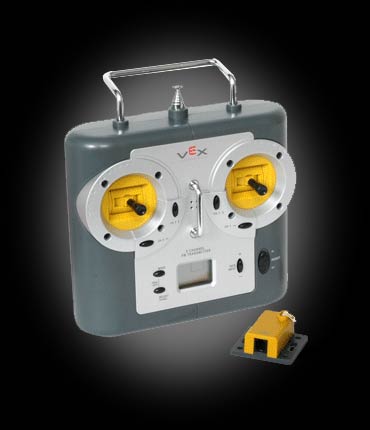

VEX Robotics Transmitter and Receiver
Part# 0-276-2153



(average customer rating)

$129.99
This Product Has Been Discontinued
Stock Status: Removed
