0-COPAL60 COPAL 60:1 Gearmotor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
is a very popular motor for Antweight robots. Some of the top robots out
there use this motor for drive. Very high power, light weight and very
efficient, this incredible little motor is one great value, and at under
1 ounce each!</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The built-on
60:1 gearhead provides a great amount of torque to the wheels. We recommend
using our <a href="lite_flite_wheels.html">Foam Tires</a> with this motor,
as they provide good shock absorption for the small gearhead. Pre-wired
with about 4&quot; long leads.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage:
6-12V<br>

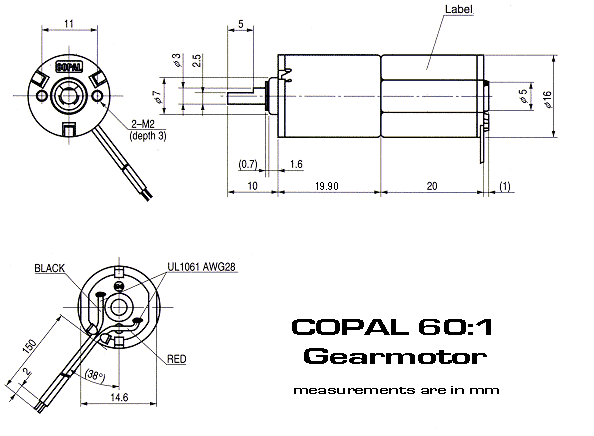

Only 1.57&quot; (36mm) ong, 5/8&quot; (16mm) diameter<br>
Weight: .88oz (27g) <br>
71.44 oz-in (5144 g-cm) torque @ 12V<br>
50.49 oz-in (3636 g-cm) torque @ 6V<br>
410 rpm @ 12V<br>
220rpm @ 6V<br>
Stall at 1.3a<br>
3mm diameter shaft with 5mm long flat<br>
Two M2 mounting holes on the face of the gearbox<br>
Sleeve bearings and resin gears for quiet operation and long life</font></p>

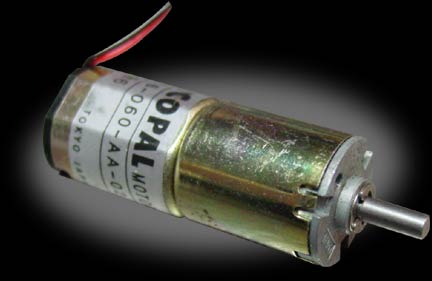

COPAL 60:1 Gearmotor
A small, high torque, geared motor to drive Antweight robots.

$28.99
Robot MarketPlace - COPAL 60:1 Gearmotor

Motors
    Small Geared Motors


Click photo to enlarge.

COPAL 60:1 Gearmotor
Part# 0-COPAL60
