0-B16 Beetle B16 Gearmotor 16:1 <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
are some awesome
motors for your Beetleweight (3 pound) robot, or for a steroid-powered
Antweight.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All-metal
planetary gearbox with metal gears. A super-zippy 16:1 speed ratio. If you need more torque, check out our other Beetle gearmotors.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Check
out these numbers: </font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="22%" rowspan="2" class="main">&nbsp;</td>
<td colspan="2" valign="bottom" class="main"><div align="center"><font color="00ff66"><b><font size="2" face="Arial, Helvetica, sans-serif">B16
model</font></b></font></div></td>
</tr>
<tr>
<td width="14%" class="main"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V</font></td>
<td width="14%" class="main"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No
load speed </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">468rpm</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">937rpm</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
@ nominal</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.3
A</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.4
A</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
current</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.0
A</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.1
A </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
torque</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">27
oz-in (1944 g-cm)</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">45
oz-in (3240 g-cm)</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gear
ratio</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">16:1</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.29
oz (65g)</font></div></td>
</tr>
<tr>

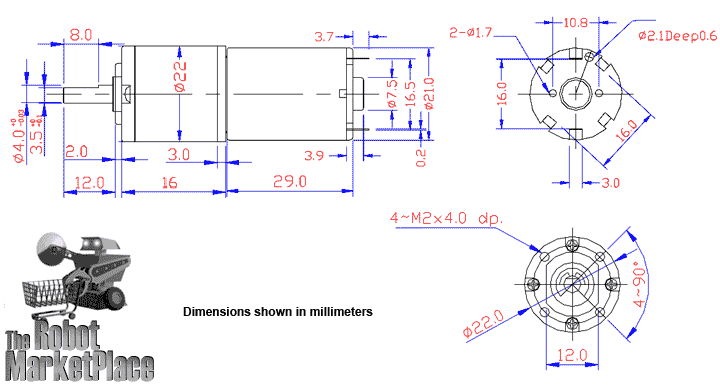

<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.86&quot; (21.8mm)</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.861&quot; (47.3mm) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4
mm - with flat </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12
mm</font></div></td>
</tr>
<tr>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes </font></td>
<td colspan="2" class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Four M2 mounting holes on the gearbox face </font></td>
</tr>
</table>

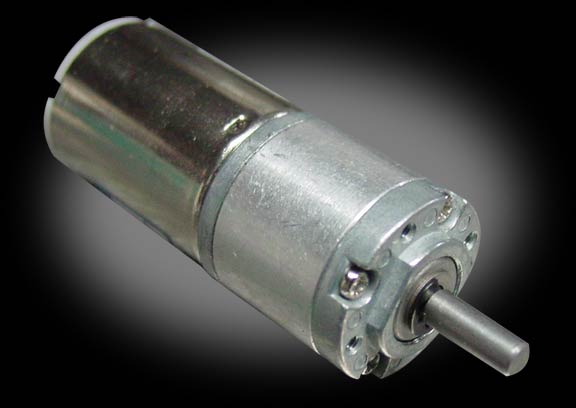

Beetle B16 Gearmotor 16:1
One of the most popular dirve motors for Beetleweight (3lb) robots.

$29.99
Robot MarketPlace - Beetle B16 Gearmotor 16:1

Motors
    Small Geared Motors


Click photo to enlarge.

Beetle B16 Gearmotor 16:1
Part# 0-B16



(average customer rating)

Was: $31.99

Our Price:

$29.99

This Product Has Been Discontinued
Stock Status: Removed
