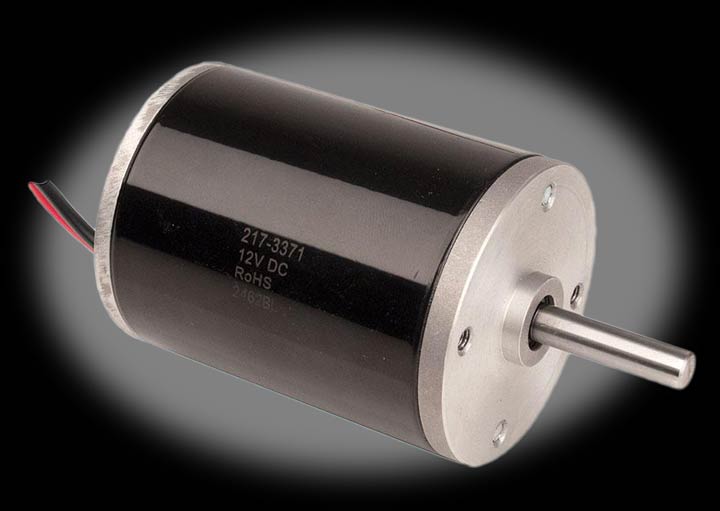

VEX-217-3371 VEX Pro Mini CIM Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Mini CIM has 2/3 the power of a CIM motor, in a similar form-factor and with the same mounting. Similar output speeds allow Mini CIM motors to be combined in mechanisms with full-size CIM motors using the same gearing. Use this motor interchangeably with CIMs in your designs, then swap them in and out to put your power where you need it most. FIRST legal. 12V DC. </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Shaft Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8mm (0.314in.) with 2mm keyway </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free Speed </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6200 rpm (+/-10%) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Power</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">230 W </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.4N-m (12.4 in-lbs) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">86A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(4) #10-32 tapped holes on a 2in. bolt circle </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5in. diameter, 3.36in. long </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.16lbs.</font></td>
</tr>
</table>
