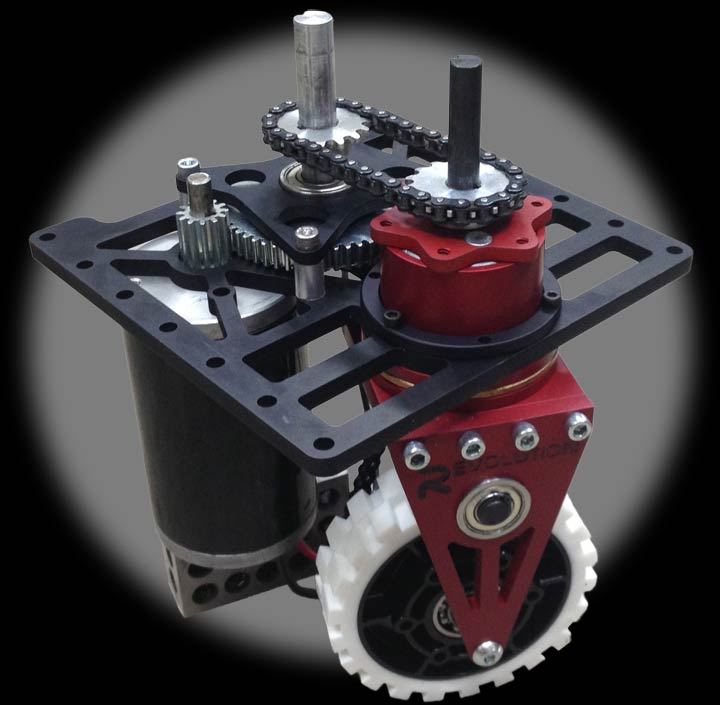

PK-CS-005 Revolution CIMple Box Mount Assembled <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">A Revolution module with integrated transmission and two CIM motors. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The final drive ratio is approximately 10.35:1 from the CIM shaft to the wheel output. This generate about 450 RPM of wheel speed or a ground speed of about 7.4 Ft/sec. </font></p>

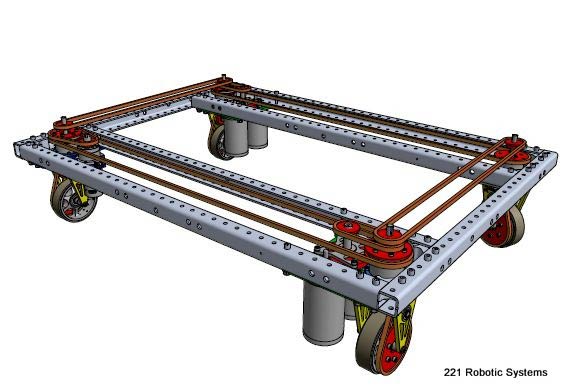

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Combine this module with the <a href="PK-CS-006.html">PG71 Steering Mount</a> to build a complete swerve/crab mobile robot. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This product is shipped assembled with Revolution and CIM motors! Wedgetop tread is NOT assembled to the Performance Wheel. The Plaction Wheel option does include tread mounted. We offer <a href="VEX-217-2890.html">Vex Wheel Tread</a> for purchase separately. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Choose between red and gold module colors, and wheel style above. Weight per Revolution Module &amp; 2 CIM motors is 9.6 lbs. </font></p>

Revolution CIMple Box Mount Assembled
A Revolution module with integrated transmission and two CIM motors.

$535.00
Robot MarketPlace - Revolution CIMple Box Mount Assembled

Mechanical and Drive
    Revolution


Click photo to enlarge.

Revolution CIMple Box Mount Assembled
Part# PK-CS-005




Please see this product on the new Robot MarketPlace web site. Click here
