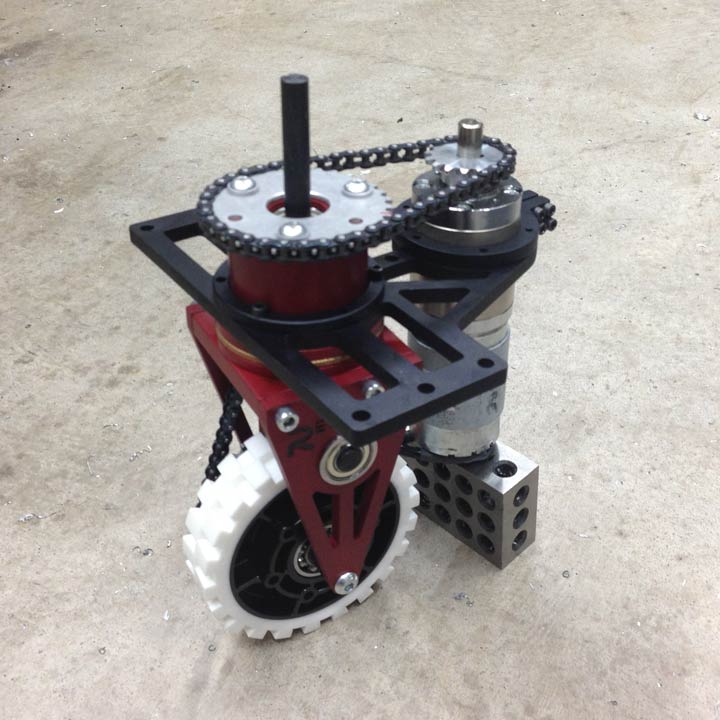

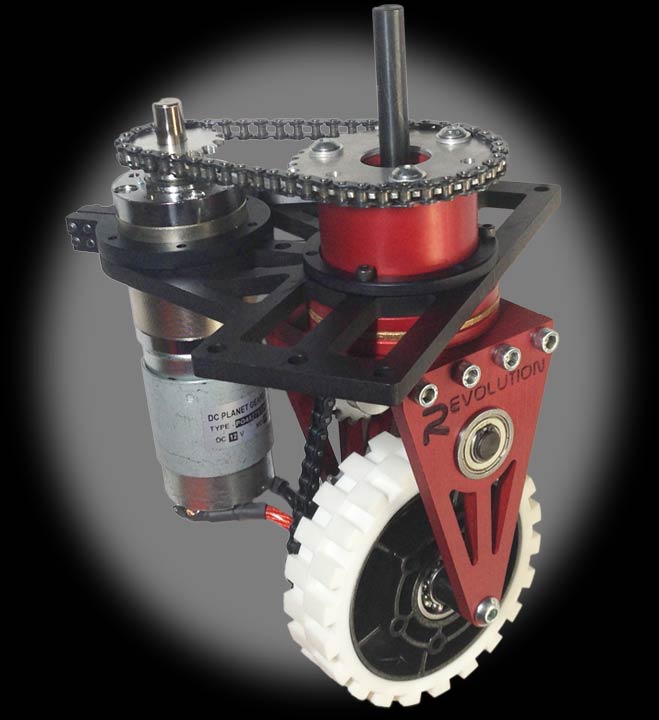

PK-CS-006 Revolution PG71 Steering Mount Assembled <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">A Revolution module with integrated steering joint driven by a PG71 Planetary gearbox. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Include a 2:1 ratio between the PG71 shaft and the Revolution steering input. This generates a steering joint rotation speed of approximately 40 RPM. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All components black anodized 6061-T6 aluminum. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This product is shipped assembled with module and PG71 motor! Wedgetop tread is NOT assembled to the Performance Wheel. The Plaction Wheel option does include tread mounted. We offer <a href="VEX-217-2890.html">Vex Wheel Tread</a> for purchase separately. </font></p>

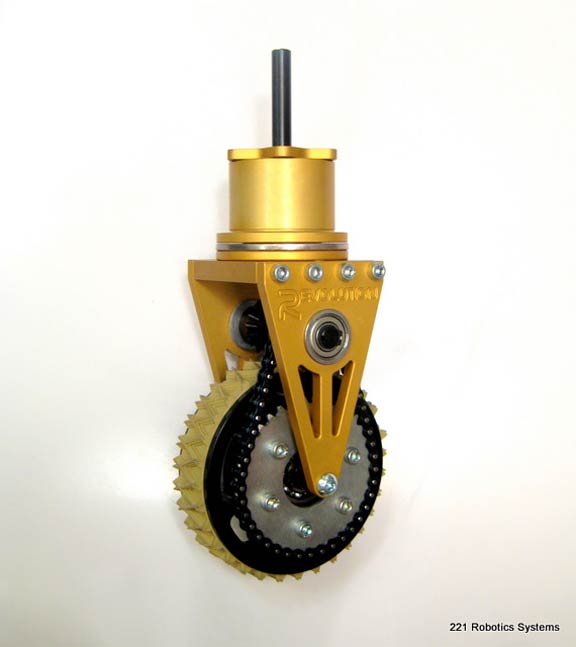

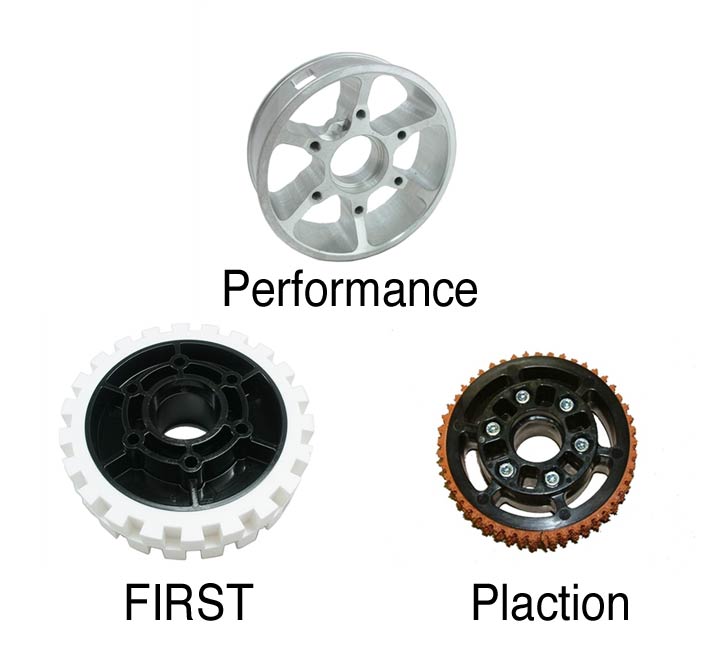

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Choose between red and gold module colors, and wheel style above. Weight is 5.0 lbs. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">PG71 Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Voltage: 12V DC<br />
Gearbox Reduction: 71:1<br />
No Load Free Speed: 75 RPM<br />
No Load Current: 0.6A<br />
Stall Torque: 16.6 ft-lb<br />
Stall Current: 22A<br />
Mounting Holes: M4 x 0.7 threaded hole (4) x 9mm deep<br />
Output Shaft size: 10mm diameter with 4mm keyway<br />
Overall Length: 6.26 inches<br />
Maximum Diameter: 1.775 inches<br />
Weight: 1.9 pounds</font></p>

Revolution PG71 Steering Mount Assembled
A Revolution module with integrated steering joint driven by a PG71 Planetary gearbox.

$485.00
Robot MarketPlace - Revolution PG71 Steering Mount Assembled

Mechanical and Drive
    Revolution


Click photo to enlarge.

Revolution PG71 Steering Mount Assembled
Part# PK-CS-006
