LB-ANT100-2 Ant 100 Dual 5A Speed Controller-with connectors <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
Ant 100-02 R/C Robot Controller offers unparalleled control, functionality
and reliability for your creation with dual motor drive with optional
mixing (single stick), exponential curve (improves controllability)
and a FLIP input that corrects motor drive output for robots that
are invertible. </font></p>
<p align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications:
</font><font size="2" face="Arial, Helvetica, sans-serif"><br>
<font color="00ff66">- 1-1/2&quot; sq board, 1-1/4&quot; hole pattern
for 4-40 bolts.<br>
- 8 grams no connectors, 13.5 grams with connectors<br>
- 5-14 cell NiCad or NiMh input&nbsp;&nbsp; (6V - 16.8V) OR 2-7 cell
LiPoly<br>
- Left/Right drive rated for 2.0 amps each, 5 amp peak. Fully protected
against overloads and shorts.<br>
- Selectable channel mixing for single stick control.<br>
- Selectable exponential transfer curve for greater control.<br>
- +5v power supplied to radio. (Battery elimination circuit -BEC)<br>
- Ultra efficient driver needs no heat sink.&nbsp;&nbsp;<br>
- Advanced switching for precise control at low speeds.<br>
- FLIP input for automatic drive correction of invertible robots compatible
with R/C signals OR contact closure (cable not included).<br>
- Status LED indicating signal presence for each channel or fault conditions
with drivers (over temperature, over current or disconnected motor)</font></font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On
board channel mixing and exponential control allows inexpensive AM
and FM ground radios to perform like the expensive computerized radios.&nbsp;
In addition, the ANT controller have&nbsp; robust input signal processing
for reliable robot control.&nbsp; If the signal is corrupted or lost
the robot will shut down within 1/2 second</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
ANT 100 board is designed to perform without a heat sink: the board
has a heavy 2 oz copper ground plane that acts as the heat sink.&nbsp; The
driver chips are mounted on the bottom of the board so that it may
be bolted to a heat sink (e.g. robot chassis) to extend the power
dissipation capacity.&nbsp;</font></p>

Robots and Team Testimonials

Ant 100 Dual 5A Speed Controller-with connectors
The Ant 100-02 R/C Robot Controller offers unparalleled control, functionality and reliability for your creation with dual motor drive with optional mixing (single stick), exponential curve (improves controllability) and a FLIP input that corrects motor drive output for robots that are invertible.

$54.95
Robot MarketPlace - Ant 100 Dual 5A Speed Controller-with connectors

Electronics
    Barello Speed Controllers

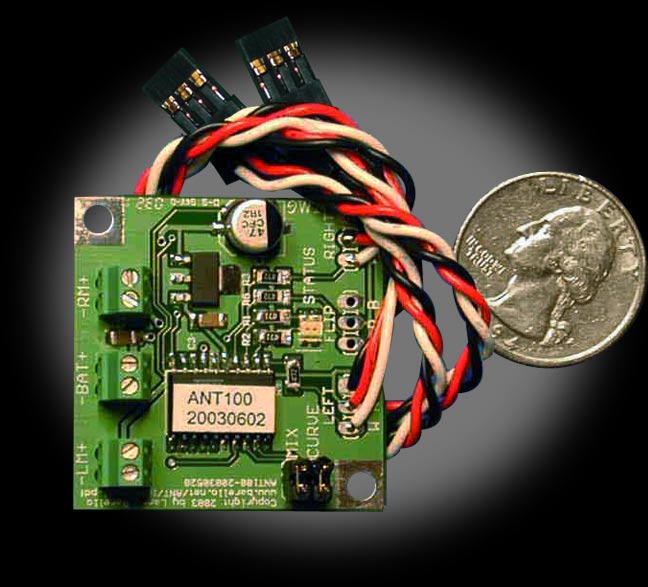

Click photo to enlarge.

Ant 100 Dual 5A Speed Controller-with connectors
Part# LB-ANT100-2


No reviews yet.

$54.95
This Product Has Been Discontinued
Stock Status: Removed
