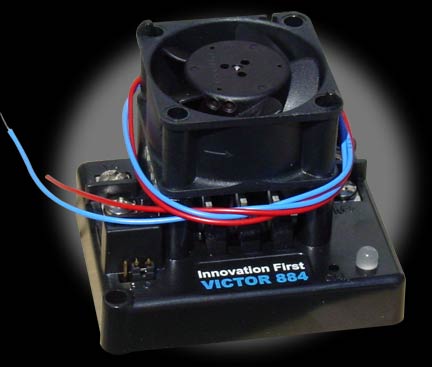

This product has been discontinued. Please see this similar product instead.The Victor 884 is a speed controller specifically engineered for robotic applications.
The 40A capacity, low voltage drop, and peak surge capacity make the Victor
884 ideal for drive systems while its braking options and precise control meet
the demanding needs of arms and lift systems.
The Victor 884 is an improved version of our Victor 883 speed controller.
The 884 has greater control of arms, mechanisms, and feed-back loops. The Victor
884 provides output control from 3% to 100%. The Victor 883 has output control
from 10% to 100%.
The Victor 884 has a deadband with respect to the PWM signal, which is approximately
117 to 137 (127 center). Any PWM signal within the deadband results in no output
(neutral). The PWM deadband accommodates joysticks that do not return to the
exact same center. The PWM deadband effect can be overridden by Robot Controller
code if needed. NOTE: It is REQUIRED that you use a PWM Signal Driver if you are not using
an IFI RC unit.
This
unit is compatible with standard R/C equipment only when using the PWM
Signal Driver. We do not include any cables when shipping this unit, be certain you have your own signal boosters or complete IFI control system.
Control Signal
Standard
|
R/C Type PWM
(Pulse Width Modulation) single-channel |
Operating
Voltage |
6V
to 15V |
Maximum Current
|
40A continuous
|
Power Connector
Type
|
6-32 Screw Terminals (Maximum Screw Torque - 5 in*lbs)
|
Signal Connector
Type
|
Use a standard
non-shrouded PWM cable (3 wires) |
Typical Application
|
Power one motor
with variable speed forward, reverse, or off |
Weight |
0.25 lbs (4 oz) |
Please note that the Victor controllers do not include a BEC. Receivers will need a different power source.
