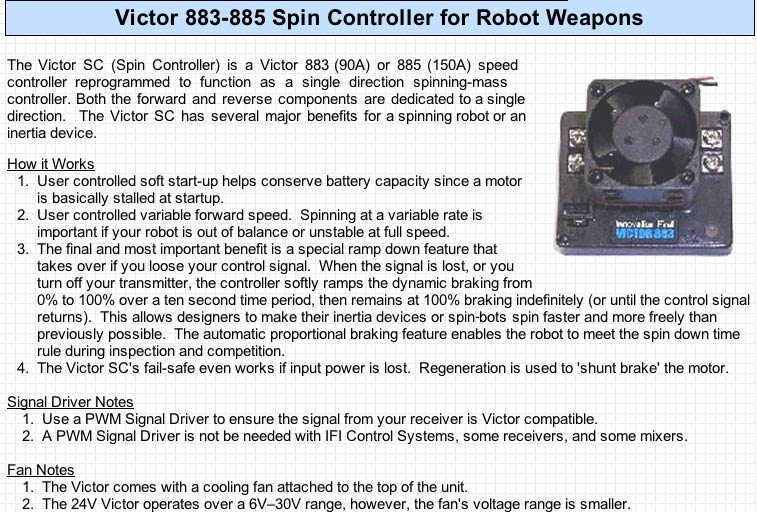

IFI-SC885 IFI VEX Pro Thor SC <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
Thor SC is a 150A spin controller specifically designed for spin-bots
and inertia devices. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
unit is compatible with standard R/C equipment using the <a href="IFIW-SIG36.html" target="_top">PWM
Signal Driver</a>.</font></p>
<table width="80%" border="1" align="center" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Signal
<br>
Standard <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">R/C Type PWM
(Pulse Width Modulation) single-channel</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V Fan Operating
Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16V to 30V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Current
<br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150A continuous
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Surge Current
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">200A for &lt;
2 second <br>
300A for &lt; 1 second</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Connector
Type <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-32 Screw Terminals (Maximum Screw Torque - 5 in*lbs)
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Signal Connector
Type <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use a standard
non-shrouded PWM cable (3 wires) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Typical Application
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power one motor
with variable speed forward or off</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.25 lbs (4 oz)</font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Please note that the Victor controllers do not include a BEC. Receivers will need a different power source. </font></p>

IFI VEX Pro Thor SC
The Thor SC is a 150A spin controller specifically designed for high-current spin-bots and inertia devices.

$219.95
Robot MarketPlace - IFI VEX Pro Thor SC
CLOSE X
Loading Image...

Electronics
    IFI Robotics Speed Controllers

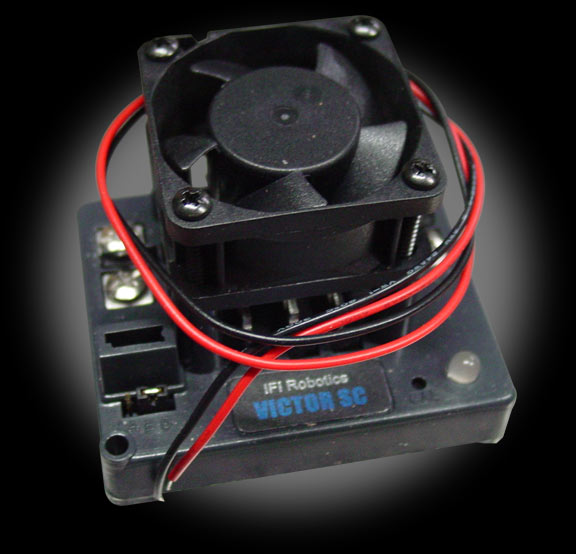

Click photo to enlarge.

IFI VEX Pro Thor SC
Part# IFI-SC885


No reviews yet.

$219.95
This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Other Documentation
Reviews & Comments

The Thor SC is a 150A spin controller specifically designed for spin-bots and inertia devices.

This unit is compatible with standard R/C equipment using the PWM Signal Driver.

Control Signal
Standard
R/C Type PWM (Pulse Width Modulation) single-channel
24V Fan Operating Voltage 16V to 30V
Maximum Current
150A continuous
Surge Current 200A for < 2 second
300A for < 1 second
Power Connector Type
6-32 Screw Terminals (Maximum Screw Torque - 5 in*lbs)
Signal Connector Type
Use a standard non-shrouded PWM cable (3 wires)
Typical Application Power one motor with variable speed forward or off
Weight 0.25 lbs (4 oz)

Please note that the Victor controllers do not include a BEC. Receivers will need a different power source.
