This

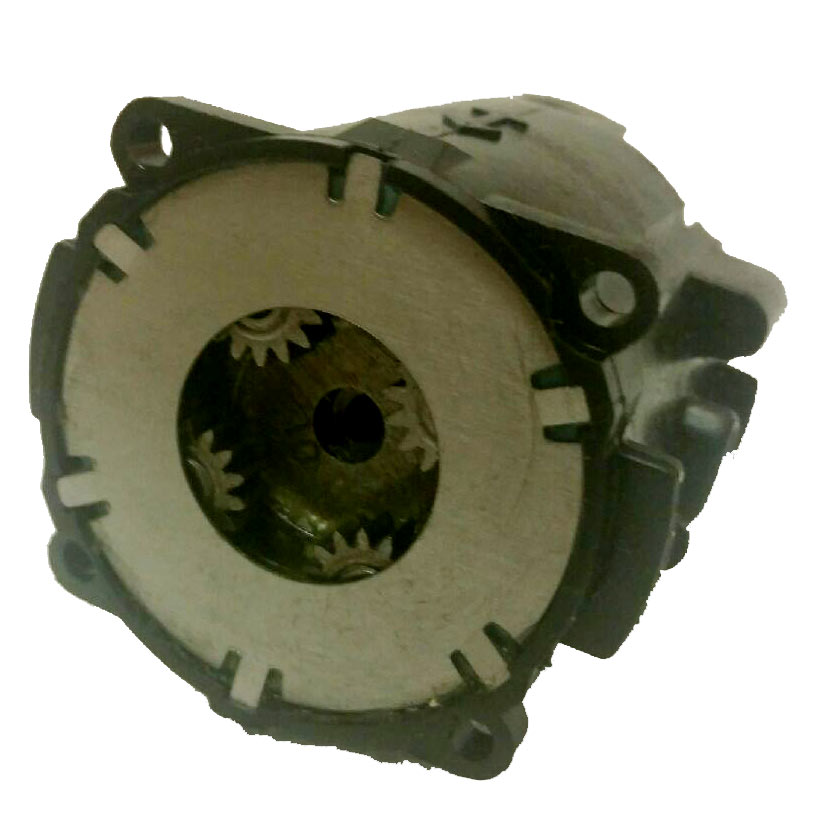

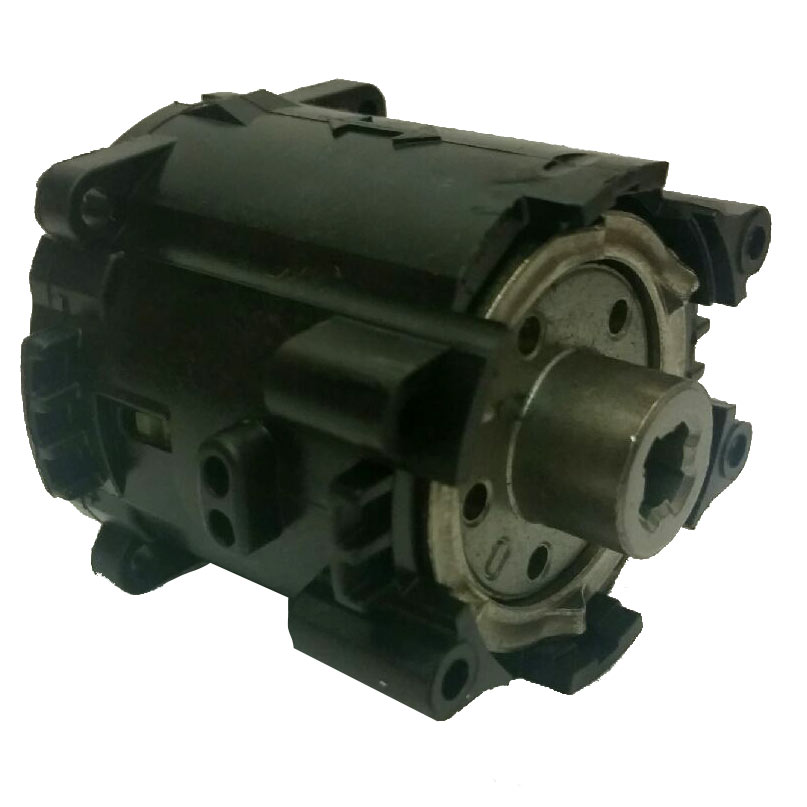

is DeWalt's factory gearbox from the 14vdc cordless power or hammer drill.
Exclusively made by DeWalt for their 14v cordless drills.
This
is a speedy gearbox for a great motor. These 2-speed, planetary gearboxes
with all metal gears represent the best value in high technology, power
and price. It is simply the best 14v drill motor gearing solution you're
going to find for the price, and has a thoroughly proven track record.
The specific
numerical values below reflect those discovered by bot builders, and DeWalt
does not approve nor deny them as accurate.
For
Motor # |
14V
(Old Style) |
DeWalt
Part # |
380264-09 |
Input
accepts |
22
teeth |
Output
Shape |
X
- spline |
Low
Gear RPMs |
600 |
High
Gear RPMs |
1750 |
Low Gear
Ratio |
53.59375
: 1 |
High
Gear Ratio |
15.3125
: 1 |
Max
Torque |
290
inch pounds |
Lubrication |
Grease |
Weight
|
7.10oz
or 0.4437 Lbs |
