BP393111-04 DeWalt 14.4V Old Style Drill Motor <p align="left"><font color="262626" size="2" face="Arial, Helvetica, sans-serif">This
is DeWalt's OLD VERSION of its 14.4vdc replacement motor for its cordless
powerdrills of the same voltage. This little thing is a powerhouse that
would be perfect for that 12 thru 60-pounder you've been dreaming of.
</font></p>
<p align="left"><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Just
in case you saw the pictures and were curious, this motor may actually
be the same one as the old 12v version. -They weight the same, look the
same, are priced the same, and I wouldn't be suprised if their voltage
range was the same as well.</font></p>

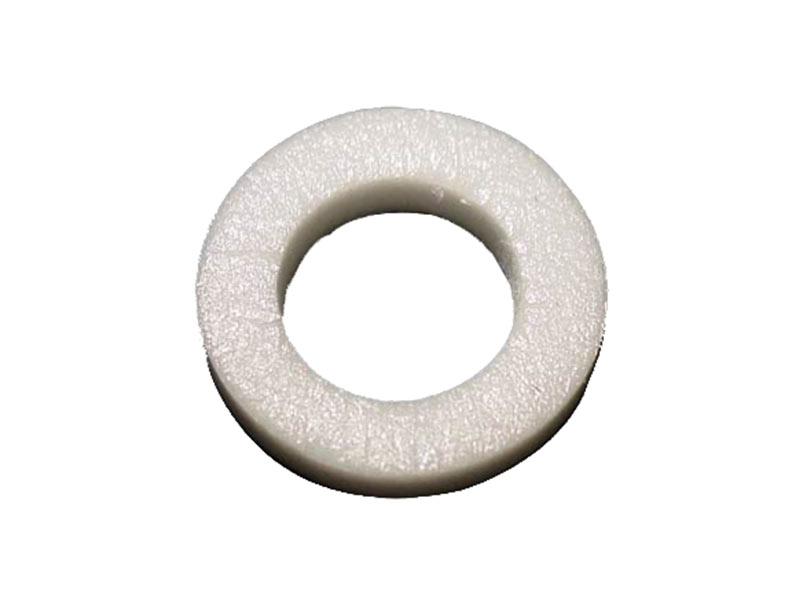

<p align="left"><font color="262626" size="2" face="Arial, Helvetica, sans-serif">If you
plan to couple this motor to it's intended gearbox, or to any DeWalt gearbox
for that matter, choose the option to add the 'Foam seal,' which is a
small, styrofoam O-ring made to fit bettween the DeWalt motors and their
gearboxes, forming a seal against dust particles andother bad things you
don't want to get in your gearbox. Think of it as a $1.29 insurance plan.</font></p>
<TABLE width="100%" border=1 align="right" cellPadding=0 cellSpacing=0 bordercolor="#666666">
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">DeWalt
Part #</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">393111-02</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Voltage
</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">14.4vdc
(can be overvolted) </FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Torque Constant </FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">.91 oz-in./amp </font></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Voltage Constant </FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">1230 RPM/V </FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Stall Amperage </FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">119 amps </FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Output
gear</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">22
Teeth, nonstandard pitch </FONT></TD>
</TR>
<TR>
<TD><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft</font></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">5mm
dia x 7.7mm</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Diameter</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">47mm
(1.85lin)</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Length</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">82mm
(3.23in)</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight
</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">20
oz (1.25lb)</FONT></TD>
</TR>
</TABLE>

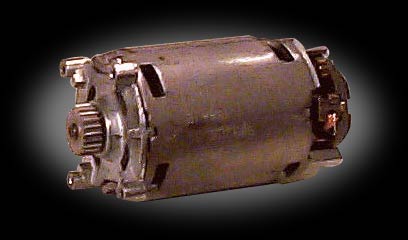

DeWalt 14.4V Old Style Drill Motor
This is DeWalt's OLD VERSION of its 14.4vdc replacement motor for its cordless powerdrills of the same voltage. This little thing is a powerhouse that would be perfect for that 12 thru 60-pounder you've been dreaming of.

$86.99
Robot MarketPlace - DeWalt 14.4V Old Style Drill Motor

Motors
    Dewalt Motors

DeWalt 14.4V Old Style Drill Motor
Part# BP393111-04




Please see this product on the new Robot MarketPlace web site. Click here
