4QD PRO-150 Speed Controller
Probably the most user-friendly programmable motor controller available! The Pro-150 has a display and on-board sounder to make programming easy.

$385.00

Probably the most user-friendly programmable controller available. Programming is easy, using the display. In use, the display shows the system state and an on-board sounder also indicates any problems.

On-board micro computer uses a RISC AVR microcontroller for repeatable performance, versatility, system fault detection and display, battery monitoring, user programmability, and thermal management.

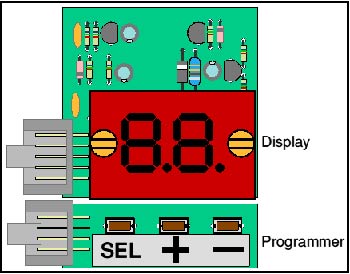

The programmer and the display are the same unit - in two halves so they can be separated once initial programming is done! The display, once the controller has been installed, is used to show battery state and to give a visible indication of any fault detected. User programming is comprehensive, yet very simple. Of prime importance is the Personality feature - this is the only thing the average user will ever need to change as the controller has build in several different sets of performances, or Personalities, to suit for instance, a ride-on golf buggy, a miniature locomotive, a boat etc. Each personality is separately programmable without affecting the other personalities.

There is no separate, expensive programmer, so user programming becomes economical and sensible even for the low volume user. Contrast this with 'industry standard' controllers, designed for high volume users, where the programmer costs far more than the controller!

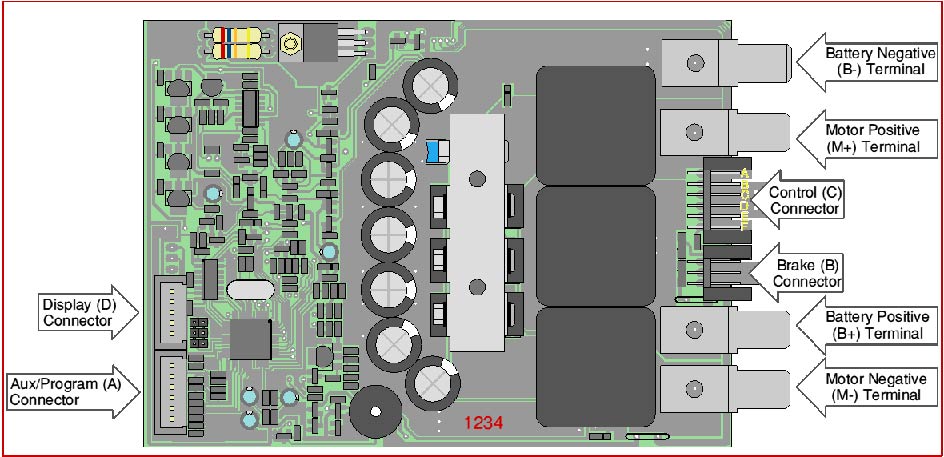

All essential inputs are on one 6-way connector. Should the more advanced features be required, these are on a separate connector.

The on-board computer monitors the controller and much of the external system. Should a fault be detected, the computer will not only shut down the controller but will give and indication of the fault on the external display.

An on board sounder gives audible indication of any fault detected. Or it can be configured as a reversing sounder. This feature brings the controller to life during setting up - and makes diagnosis of system faults via telephone easy!

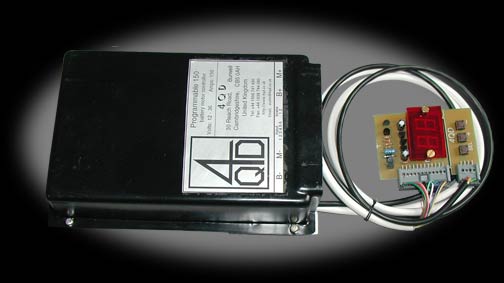

Standard controller comes with base/heatsink plus cover, display/programmer, interconnecting cables from controller to display.

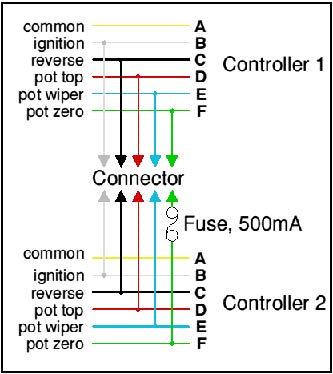

The DMR-203 can be used with one or two Pro-150 controllers. Instructions on how to use them together can be found here.

Battery Voltage
Nominal	16V to 48V (self-adjusting)
Maximum allowable (at power-up)	55v
Typical Motor Current
Limit	165A
10 Seconds	150A
5 Minutes	80A
Continuous	60A
Power Terminals
Battery	Double 9.5mm fast-on blades.
Motor	9.5mm and 6.3mm fast-on blades.
Control Inputs
Throttle	10k Linear Pot. Other values can be used.
Ignition	Single Pole Switch.
Reverse	Single Pole Switch.
Display	2-Digit, 7-Segment.
Programmer	3 buttons, integrated with display (may be removed)
Primary Adjustments ranges
Maximum Forward Speed	10% to 100%
Maximum Reverse Speed	10% to 100%
Forwards Acceleration Ramp Time	100ms to 1 minute
Reverse Acceleration Ramp Time	100ms to 1 minute
Forwards Deceleration Ramp Time	100ms to 1 minute
Reverse Deceleration Ramp Time	100ms to 1 minute
Fault Detection
Main Relay Check	At startup.
Full MOSFET Integrity Check	At startup.
High Pedal Lockout.	At startup.
Online MOSFET Check.	100 times per second.
High or Low Battery Voltage Check	100 times per second.
Motor Current/Time Check	100 times per second.
Throttle Fault Check	100 times per second.
Heatsink Temperature Check	100 times per second.
Protective Mechanisms
Reverse Polarity Protection	-60V Max
Motor Current Limiting	150A to 60A, time profiled
Over Voltage Limiting	60V
Under Voltage Limiting	8V
Dimensions
Board only	101 x 141 x 36mm excluding Tabs
Cased unit	121 x 181 x 46mm excluding Tabs
Weight
Unboxed	320g
Boxed	630g
