4QDW-DMR-203 4QD DMR-203 Radio Control Interface
<p align="left"><font face="Arial, Helvetica, sans-serif" size="2"> <font color="00ff66">This
is the unit that you would use to go between your standard Futaba/JR/etc
radio receiver and your <a href="4qd_main.html">4QD
speed controller</a>. It will proportionally operate two
controllers from two channels of your reciever or other standard
Pulse Position Modulated (PPM/PWM) inputs. </font></font></p>
<p align="left"><font face="Arial, Helvetica, sans-serif" size="2"> <font color="00ff66">
Applications include<br><br>

&bull; Robot Wars<br>
&bull; Remote controlled Golf Caddies<br>
&bull; Model Railways<br>
&bull; Model Tanks<br>
&bull; Other applications where powerful motor control via radio is required.<br></font></font></p>





<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
software implements Dead-band areas on both center and full stick
positions and Signal Validation and Rejection routines for noise
immunization.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
unit includes opto-isolators at the input from the radio control receiver
to minimize problems which can otherwise occur from motor noise etc.</font></p>
<p align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Features</font><font size="2" face="Arial, Helvetica, sans-serif"><br>
<font color="00ff66">&bull; Dual Channel Radio Control Electronic
Speed Control utilizing RISC AVR Micro-controller technology.<br>
&bull; 128-State PWM (Pulse Width Modulated) Proportional Output with Reverse
Drivers.<br>
&bull; Mixed or Tank Style Steering modes.<br>
&bull; Configurable Zero Output Failsafe System.<br>
&bull; Switched or Proportional Output Modes.<br>
&bull; Signal Validation and Rejection for Noise Immunization.<br>
&bull; Low Power Consumption.<br>
&bull; Failsafe system that can bring the system to a safe state.<br>
&bull; Compact and Lightweight Design.</font></font></p>
<table width="95%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="17%" bgcolor="#003300"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating
Voltage </font></td>
<td width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.7
- 32VDC </font></td>
</tr>
<tr>
<td bgcolor="#003300"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power
Consumption </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50mW</font></td>
</tr>
<tr>
<td bgcolor="#003300"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.91 x 2.13
x 1.5&quot; </font></td>
</tr>
<tr>
<td bgcolor="#003300"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.87 oz </font></td>
</tr>
</table>

4QD DMR-203 Radio Control Interface
The DMR Interface board is a general purpose Dual-Channel Radio-Control interface providing proportional motor speed control from two standard Pulse Position Modulated (PPM/PWM) inputs. For use with 4QD, VTX, and Pro-120 speed controllers.

$78.50
Robot MarketPlace - 4QD DMR-203 Radio Control Interface

Electronics
    4QD Electronic Interfaces

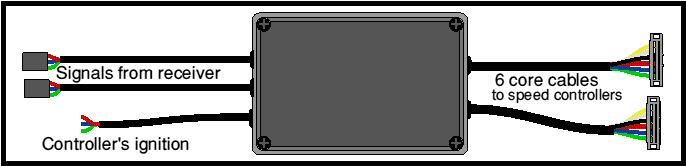

Click photo to enlarge.

4QD DMR-203 Radio Control Interface
Part# 4QDW-DMR-203
