0-KG12T300 KG17 52:1 Micro Geared Motor <font color="red" size="2" face="Arial, Helvetica, sans-serif"><b>This product has been discontinued. Please see <a href="http://www.robotmarketplace.com/products/0-PL998.html">this similar product</a> instead.</b><p></font><p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These are some of the smallest gearmotors we've found, nice durable quality too!</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High
quality all-metal gears. The
entire motor with gears weighs only .3 ounces!&nbsp; They are rated&nbsp;for
4.5V DC, but we have tested and run them at 9.0V, even up to 12V.
Tires can be directly mounted to the 3 mm diameter output shaft.&nbsp; </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">NOTE: The 4.5mm long shaft is too short to use with our <a href="0-MHUB07.html">Mini Aluminum Hubs</a>. Use the <a href="0-FT-LITE-HUBS.html">FingerTech Lite Hubs</a> instead.&nbsp;</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With
these motors we will see a new evolution of tiny bots!
&nbsp;</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#333333">
<tr valign="top">
<td><b><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specifications
at 4.5V:</font></b></td>
<td><div align="center"><font color="cccccc"><b><font size="2" face="Arial, Helvetica, sans-serif">17:1
- KG17</font></b></font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Typical
operating voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.7-5.0VDC</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No load speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">300&nbsp;rpm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No load current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">90 mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">load
current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">260mA
MAX</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Starting torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.0
oz-in (144 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">True gear
ratio </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">17:1</font></td>
</tr>
<tr>

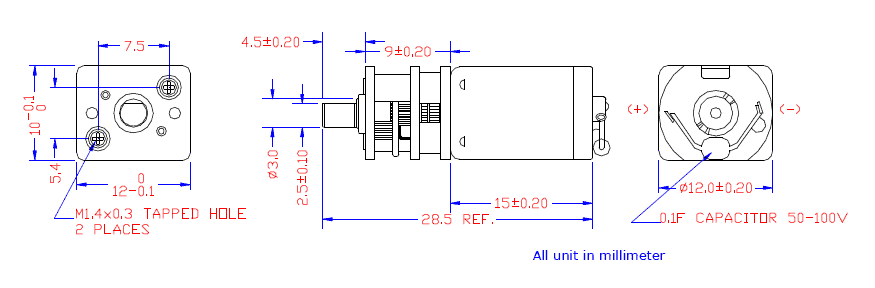

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft
Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.0mm
diameter, 4.5mm long with flat</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.47&quot; x
0.39&quot; x 0.94&quot; (12mm x 10mm x 24mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.2 grams
(0.29 oz) </font></td>
</tr>
</table>

KG17 52:1 Micro Geared Motor
When you need more speed than torque in a micro motor, this one is for you.

$17.99
Robot MarketPlace - KG17 52:1 Micro Geared Motor

Motors
    Small Geared Motors


Click photo to enlarge.

KG17 52:1 Micro Geared Motor
Part# 0-KG12T300


No reviews yet - Add yours now!

$17.99
This Product Has Been Discontinued
Stock Status: Removed
