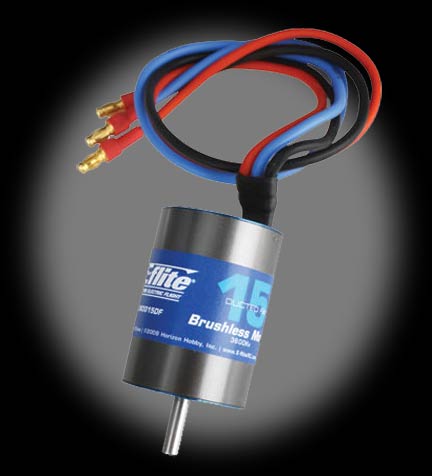

0-EFLM3015DF EFL-15-3600 BL15 Ducted Fan Motor, 3600Kv <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Features high-quality construction with ball bearings and hardened steel shaft and a 6-pole design. Ideal for up to 750 input watts.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Using the Recommended Ducted Fan Unit: <a href="0-EFLDF15.html">Delta-V 15 69mm EDF</a></font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Static Thrust: 1.7 lb on 3S (11.1V); 2.8 lb on 4S (14.8V)<br>
RPM: 31,000 on 3S (11.1V); 40,000 on 4S (14.8V)<br>
Brushless ESC: 50A - 60A </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Type: 6-pole Inrunner Brushless<br>
Size: 15-size for Ducted Fans<br>
Bearings or Bushings: Bearings<br>
Voltage: 11.1-16.8V<br>
RPM/Volt (Kv): 3600<br>
Resistance (Ri): .02 ohms<br>
Idle Current (Io): 2.80A @ 10V<br>
Continuous Current: 46A<br>
Maximum Burst Current: 55A (15 sec)<br>
Cells: 3S-4S LiPo power 10-14 Ni-MH/Ni-Cd battery<br>
Speed Control: 60A brushless<br>
Weight: 106 g (3.7 oz)<br>
Overall Diameter: 28mm (1.10 in)<br>
Shaft Diameter: 4mm (0.16 in)<br>
Overall Length: 40mm (1.56 in)</font></p>
