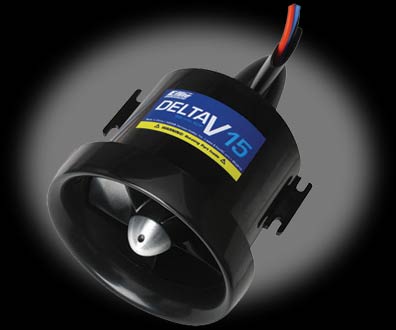

0-EFLDF15 Delta-V 15 69mm Electric Ducted Fan <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">E-flite's Delta-V 15 69mm EDF electric ducted fan unit is an ideal choice for products such as E-flite's BAe Hawk 15 DF and other similar sized ducted fan airplanes. The Delta-V 15 69mm EDF is also an ideal choice for ducted fan airplanes requiring 68-70mm diameter fan units. The <a href="0-EFLM3015DF.html">BL15 Ducted Fan Brushless Motor, 3600K</a>vis purpose-built for this Delta-V 15 69mm EDF and both products will provide great performance. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Performance Data (Measured using <a href="0-EFLM3015DF.html">BL15 DF Brushless Motor</a>)</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Recommended Motor: BL15 Ducted Fan Brushless Motor, 3600Kv<br>
Static Thrust: 1.7 lbs on 3S (11.1V); 2.8 lbs on 4S (14.8V)<br>
RPM: 31,000 on 3S (11.1V); 40,000 on 4S (14.8V)<br>
Velocity: 71 mph on 3S (11.1V); 102 mph on 4S (14.8V)<br>
Watts: 305 on 3S (11.1V); 644 on 4S (14.8V)<br>
Current: 29A on 3S (11.1V); 46A on 4S (14.8V)</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Rotor Diameter: 69mm (2.7 in)<br>
Shroud Outer Diameter: 73.5mm (2.9 in)<br>
Shroud Length: 58.3mm (2.3 in)<br>
Shroud Length (Including Intake Ring): 72mm (2.8 in)<br>
Center Body Inside Diameter: 28.3mm (1.1 in) - designed for 28mm motor<br>
Overall Weight: 88g (3.1 oz) </font></p>
