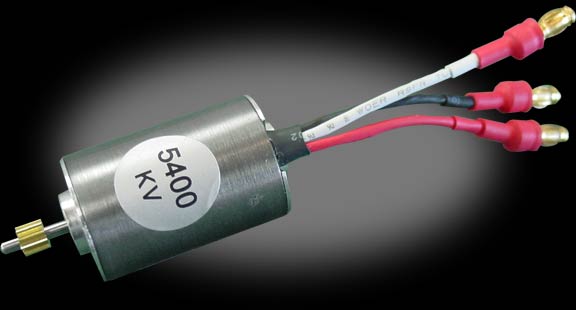

0-EFLM1005 EFL-370-5400 Inrunner Brushless Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
is the same size motor as the <a href="0-EFLM1000.html">EFL-370-4100</a>,
just with a different winding for higher speed- at the same price!
</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use
where you previous operated Speed 370 or Speed 280 motors- more power,
smaller, and less weight! </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The EFL-370
motor package <a href="htttp://robotcombat.com/products/images/store_efl_accessories_lg.jpg">includes
several extras</a>: The motor, an adapter ring, 10T pinion (removable),
fasteners, prop adapter, and gold-plated connectors. </font></p>
<table width="250" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Model
Number </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">EFLM1005</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7.2
- 16.8 V </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">5400</font><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">
rpm per V <br>
(almost 65,000 at 12V!)</font></p></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Current</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2-6A
nominal, 8A max. </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.787&quot; (20mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.18&quot; (30mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.68oz
(47.6g) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
size </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2mm</font></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
motors require special Brushless controllers to work properly, we
highly recommend combining this motor with our <a href="0-PHX10.html">Phoenix-10
controller</a>.</font></p>
