0-PHX10 Phoenix 10 Brushless Speed Controller <font color="red" size="2" face="Arial, Helvetica, sans-serif"><b>This product has been discontinued. Please see <a href="http://www.robotmarketplace.com/products/0-DYS30010.html">this similar product</a> instead.</b><p></font><p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The new Phoenix-10 from Castle Creations weighs just two-tenths of an ounce and comes loaded with a variety of features that make it ideal for virtually any micro-flight application.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Phoenix-10
Brushless ESC is the ideal match for <a href="store_ant_weapon_brushless.html">brushless
motors</a> that draw up to 10-15 amps. </font></p>
<p align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Features:</font><br><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Compatible with most small brushless motors (even CD-ROM motors!)<br>Auto cut-off settings for 2-, 3-, and 4-cell Li-ion and Li-Po battery packs<br>Compatible with Ni-Cd and Ni-MH packs<br>Optional brake function<br>Fixed end points and rotor governor micro-heli functions<br>Over-current protection<br></font></p>


<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Please note-
this single-channel speed controller will ONLY work with brushless motors,
it will NOT work for regular motors! See the User
Guide for complete specifications. Note that this controller is fully
programmable with the optional <a href="0-PHXUSB.html">Phoenix Link Adapter</a>. </font></p>
<p align="left">
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Operating
Voltage </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6-19.2V</font></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Continuous</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">10
amps</font> </div></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Surge</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">15
amps</font> </div></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Switching
Rate</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7,000
Hz</font> </div></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Resistance</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0013
Ohms</font> </div></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Brake</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes</font> </div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Low
Voltage Cut-off</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Programmable
with <a href="0-PHXUSB.html">Phoenix Link</a> </font></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Reversible</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes
- change any two wires</font> </div></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Size</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">.83
x 0.66 x 0.16 in.</font> </div></td>
</tr>
<tr>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight
(with wires)</font> </div></td>
<td><div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.21
oz. (6g)</font> </div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Connectors</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Standard
JR/Hitec style</font></td>
</tr>
</tbody>
</table>

Phoenix 10 Brushless Speed Controller
The new Phoenix-10 from Castle Creations weighs just two-tenths of an ounce and comes loaded with a variety of features that make it ideal for virtually any micro-flight application.

$50.99
Robot MarketPlace - Phoenix 10 Brushless Speed Controller
CLOSE X
Loading Image...

Electronics
    Brushless Motor Controllers


Click photo to enlarge.

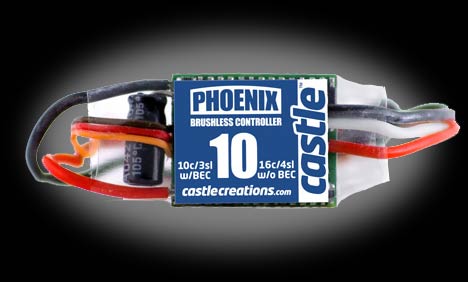

Phoenix 10 Brushless Speed Controller
Part# 0-PHX10



(average customer rating)

Retail: $59.95

Our Price:

$50.99

This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Alternate Photos
Other Documentation
Reviews & Comments

This product has been discontinued. Please see this similar product instead.

The new Phoenix-10 from Castle Creations weighs just two-tenths of an ounce and comes loaded with a variety of features that make it ideal for virtually any micro-flight application.

The Phoenix-10 Brushless ESC is the ideal match for brushless motors that draw up to 10-15 amps.

Features:
Compatible with most small brushless motors (even CD-ROM motors!)
Auto cut-off settings for 2-, 3-, and 4-cell Li-ion and Li-Po battery packs
Compatible with Ni-Cd and Ni-MH packs
Optional brake function
Fixed end points and rotor governor micro-heli functions
Over-current protection

Please note- this single-channel speed controller will ONLY work with brushless motors, it will NOT work for regular motors! See the User Guide for complete specifications. Note that this controller is fully programmable with the optional Phoenix Link Adapter.

Operating Voltage 6-19.2V
Continuous
10 amps
Surge
15 amps
Switching Rate
7,000 Hz
Resistance
0.0013 Ohms
Brake
Yes
Low Voltage Cut-off Programmable with Phoenix Link
Reversible
Yes - change any two wires
Size
.83 x 0.66 x 0.16 in.
Weight (with wires)
0.21 oz. (6g)
Connectors Standard JR/Hitec style
