0-A40-300 AmpFlow A40-300 Motor
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This motor has been used for many years by champion robot builders.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">One
of the most popular high output motors available. This very successful
motor is for the robot builder that is not kidding around. Serious power
for a serious weapon or drive system of your BIG robot. This is the motor
that has powered many BattleBots to victory!</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>

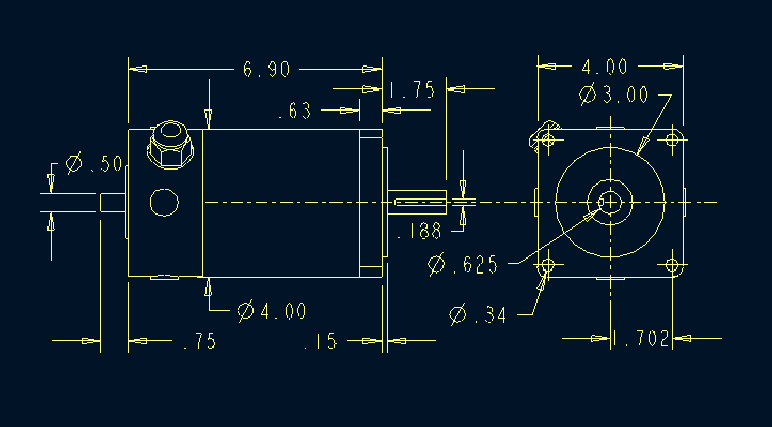

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.0 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.9 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Horsepower </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.8</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3840 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">84%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM at 24V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4000 rpm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5/8 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.75 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Keyway</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3/16 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Capacitors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Magnet Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ferrite</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Amps </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.5 Amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">340 Amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Terminal Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.050 Ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kt</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.05 oz-in/Amp </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kv</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">168 rpm/Volt </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rotor Inertia </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.25 oz-in-sec^2 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3 degC/Watt</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11.9 lbs. </font></td>
</tr>
</table>
