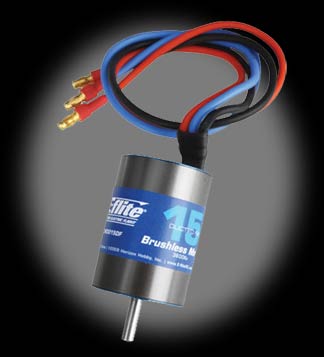

Features high-quality construction with ball bearings and hardened steel shaft and a 6-pole design. Ideal for up to 750 input watts.
Using the Recommended Ducted Fan Unit: Delta-V 15 69mm EDF
Static Thrust: 1.7 lb on 3S (11.1V); 2.8 lb on 4S (14.8V)
RPM: 31,000 on 3S (11.1V); 40,000 on 4S (14.8V)
Brushless ESC: 50A - 60A
Specs
Type: 6-pole Inrunner Brushless
Size: 15-size for Ducted Fans
Bearings or Bushings: Bearings
Voltage: 11.1-16.8V
RPM/Volt (Kv): 3600
Resistance (Ri): .02 ohms
Idle Current (Io): 2.80A @ 10V
Continuous Current: 46A
Maximum Burst Current: 55A (15 sec)
Cells: 3S-4S LiPo power 10-14 Ni-MH/Ni-Cd battery
Speed Control: 60A brushless
Weight: 106 g (3.7 oz)
Overall Diameter: 28mm (1.10 in)
Shaft Diameter: 4mm (0.16 in)
Overall Length: 40mm (1.56 in)
|
