Stock Status: Backordered

Retail: $34.99

Our Price:

QTY

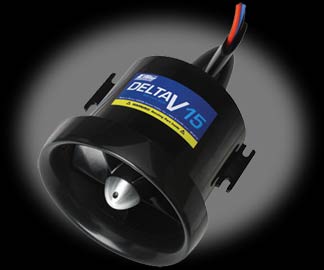

E-flite's Delta-V 15 69mm EDF electric ducted fan unit is an ideal choice for products such as E-flite's BAe Hawk 15 DF and other similar sized ducted fan airplanes. The Delta-V 15 69mm EDF is also an ideal choice for ducted fan airplanes requiring 68-70mm diameter fan units. The BL15 Ducted Fan Brushless Motor, 3600Kvis purpose-built for this Delta-V 15 69mm EDF and both products will provide great performance.

Performance Data (Measured using BL15 DF Brushless Motor)
Recommended Motor: BL15 Ducted Fan Brushless Motor, 3600Kv
Static Thrust: 1.7 lbs on 3S (11.1V); 2.8 lbs on 4S (14.8V)
RPM: 31,000 on 3S (11.1V); 40,000 on 4S (14.8V)
Velocity: 71 mph on 3S (11.1V); 102 mph on 4S (14.8V)
Watts: 305 on 3S (11.1V); 644 on 4S (14.8V)
Current: 29A on 3S (11.1V); 46A on 4S (14.8V)

Specs
Rotor Diameter: 69mm (2.7 in)
Shroud Outer Diameter: 73.5mm (2.9 in)
Shroud Length: 58.3mm (2.3 in)
Shroud Length (Including Intake Ring): 72mm (2.8 in)
Center Body Inside Diameter: 28.3mm (1.1 in) - designed for 28mm motor
Overall Weight: 88g (3.1 oz)
