VDD Kit Includes two Tamiya Gearboxes, 10 carbon rods, rubber CA glue, 8 yards of Kevlar thread, two inner wheel adapters, two foam outer wheels, two drive motors with 4 capacitors, weapon motor with gearbox, 20 mm blade adapter, hex wrench and hardware. You provide: Dual speed controller with 13 amp weapon control, 8 cell maximum Battery, Radio, three long Servo wires, a blade with 20mm bore, and armor. Some great instructions on how to assemble most of this kit can be found here. |
||
 |
|||
|

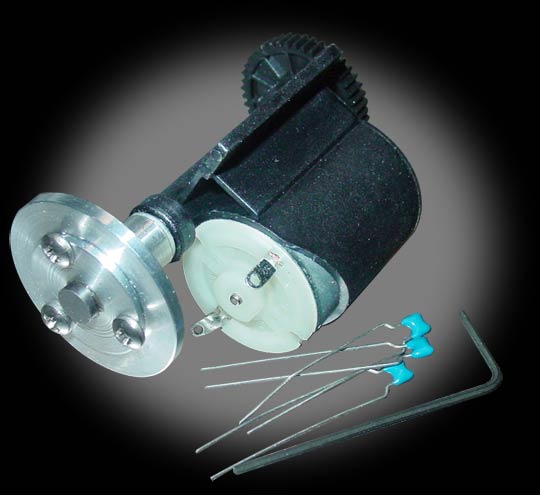

VDD Weapon Kit Includes a 3:1 gearbox with a Speed 280 motor, three noise caps and machined 20mm blade hub that is press-fitted to the output shaft a secured with a setscrew. Total
weight with hub: 2.47 oz
|
||
|
|||
|

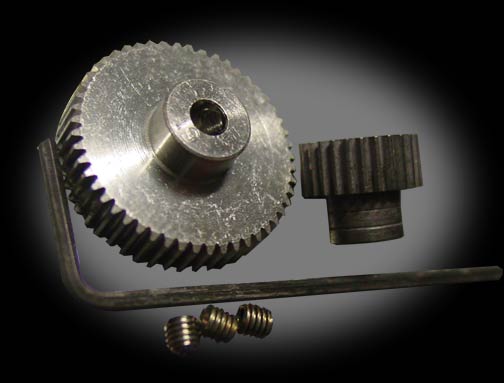

VDD Weapon Kit Metal Gear Upgrade Upgrade your VDD Weapon kit to metal gears instead of the stock plastic ones. Less of a risk of stripping teeth off the gears this way. Comes with two replacement gears, set screws and an allen wrench. Weight of gears: 0.18 oz (5.1 grams) |
||
|
|||
|

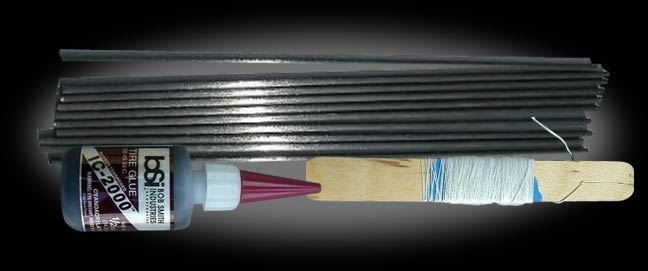

VDD Chassis Kit Includes 10 carbon rods, rubber CA glue and 8 yards of Kevlar thread. |
||
|
|||
|

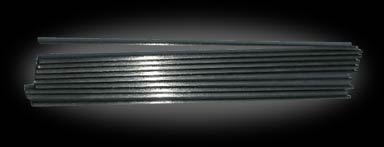

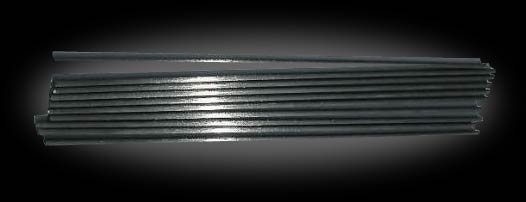

Graphite Carbon Fiber Solid Rods 10 pieces at 10 inches long each with a diameter of 0.125 inches. Each rod only weighs 0.10 oz (2.83 grams) |
||
|
|||
|

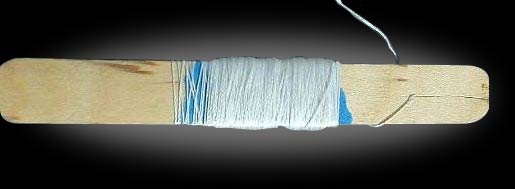

Kevlar (aramid) thread 8 yards |
||
|
|||
|

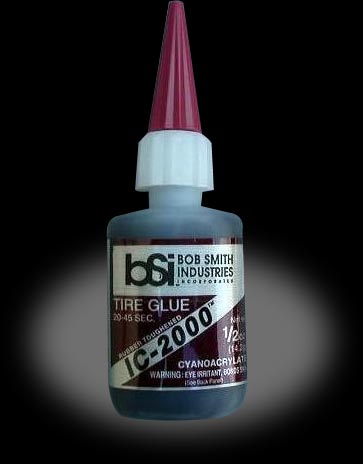

Rubberized CA Glue Half ounce of CyanoAcrylate glue. Use CA accelerator with this glue (available at Hobby Stores) |
||
|
|||
|
20mm Blade Hub For blades with a 20mm bore. 6061 T6 Aluminum Adapter with two 3mm countersunk screws, 3mm setscrew for the shaft and hex wrench included. Stock bore is 0.126", but can be drilled out larger if you need, up to 6 or 7 mm Hub weighs 0.35 oz (9.92 grams) |
||
|
|||
|

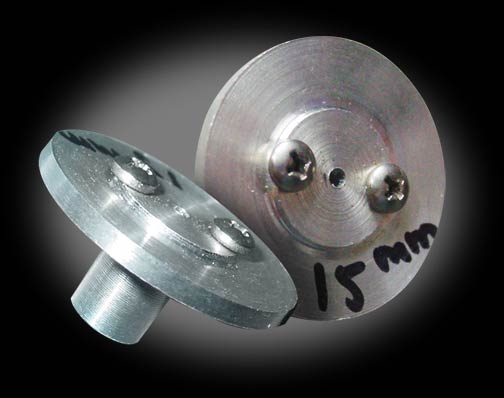

15mm Blade Hub For blades with a 15mm bore. 6061 T6 Aluminum Adapter with two screws, 3mm setscrew for the shaft and hex wrench included. Hub
weighs 0.35 oz (9.92 grams) |
||
|
|||
|

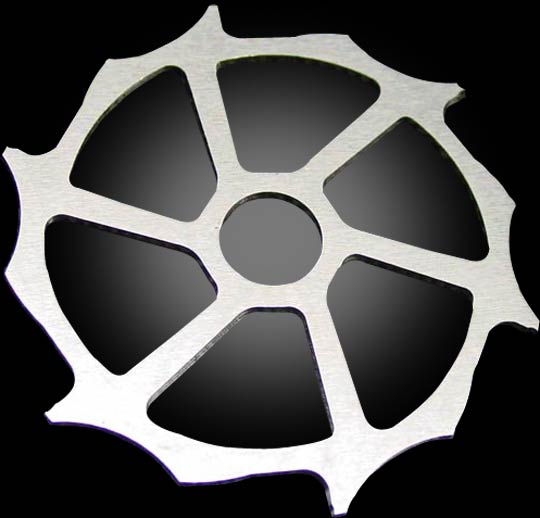

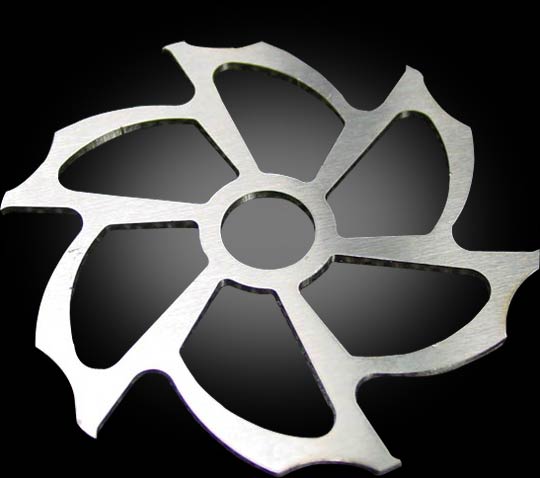

SS VDD Blade 20mm bore, Made from CNC laser-induction cut Stainless Steel. 2.29 oz, 4-9/16" diameter, 0.1" thick. 6 sharpened teeth. A blade designed specifically for the VDD lineup of bots. |
||
|
|||
|
SS VDD1 Blade 20mm bore, Made from CNC laser-induction cut Stainless Steel. 2.47 oz, 4-3/8" diameter, 0.1" thick. 6 sharpened teeth. A new blade designed specifically for the VDD lineup of bots. |
||
|
|||
|

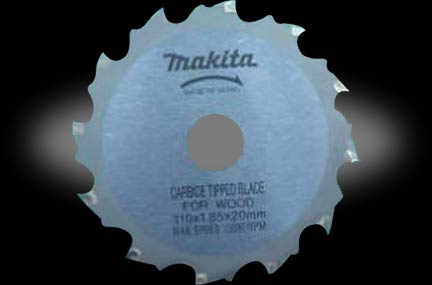

VDD1 Blade 20mm bore, 4-3/8 inch diameter (110mm), 12 carbide teeth, weighs 2.82 ounces (80 grams). Maximum speed 13890 RPM A very aggressive blade that VDD uses. |
||
|
|||
|

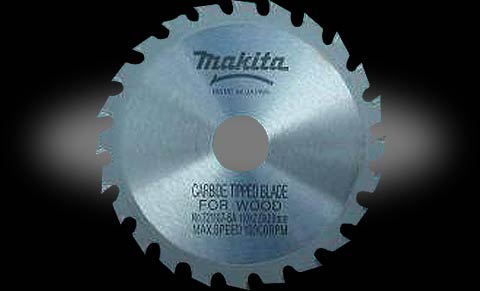

VDD2 Heavier Blade 20mm bore, 4-3/8 inch diameter, 24 carbide teeth and weighs 3.4 ounces (95 grams). Maximum speed 13900 RPM. Limited supply on hand, can be special ordered (2 weeks). |
||
|
|||
|

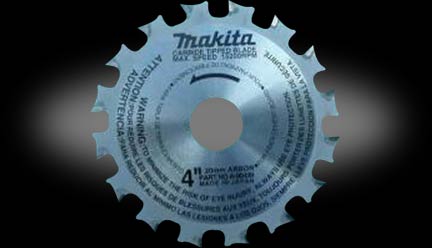

VDD3 Smaller Blade 20mm bore, 4 inch diameter, 16 carbide teeth and weighs 2.0 ounces (57 grams). Maximum speed 15200 RPM. Limited supply on hand, can be special ordered (2 weeks). |
||
|
|||
|
VDD4 Lighter Blade 20mm bore, 4-3/8 inch diameter, angled teeth and weighs 2.0 ounces (58 grams). Maximum speed 12150 RPM. Limited supply on hand, can be special ordered (2 weeks). |
||
|
|||
|

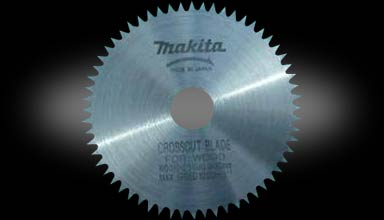

VDD5 Crosscut Blade 20mm bore, 4-3/8 inch diameter, straight teeth and weighs 2.0 ounces (57 grams). Maximum speed 12150 RPM. Limited supply on hand, can be special ordered (2 weeks). |
||
|
|||
|

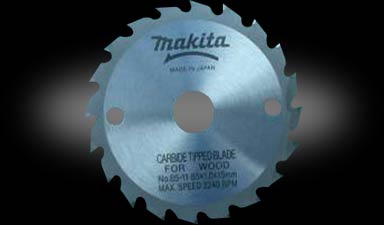

VDD6 Smallest Blade 15mm bore, 3-3/8 inch (85mm) diameter, 20 carbide teeth and weighs 0.88 ounces (25 grams). Maximum speed 2240 RPM. Special Order Only (2 weeks) needs a 15mm hub adapter. |
||
|
|||
|

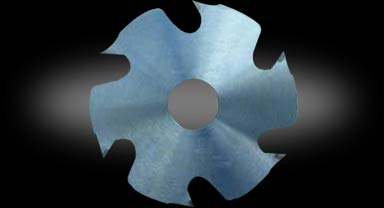

VDD7 Beetle Blade 22 mm bore, 4 inch diameter, 6 carbide teeth and weighs 5.1 ounces (145 grams). Maximum speed 12090 RPM. Special Order Only (2 weeks) needs a 22mm hub adapter. |
||
|
|||
