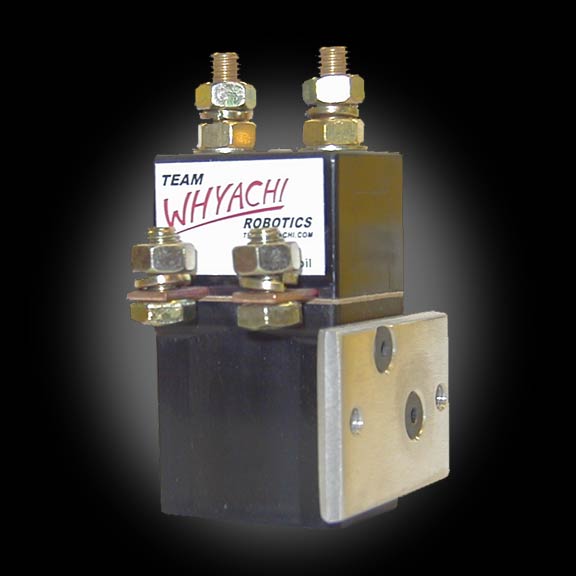

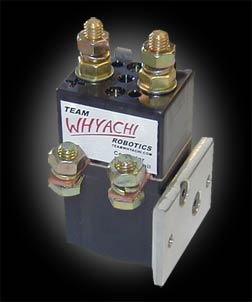

TW C1 Contactor

A great solenoid contactor for 3" Magmotors.
24VDC coil @ 0.5A
SPDT Type so you can wire a motor for braking
Compact size, 1.30"x1.45"x 3.21"
Weight: only 8oz

48 VDC Current Ratings
Continuous: 80A
3 min. : 240A
25 sec: 500A

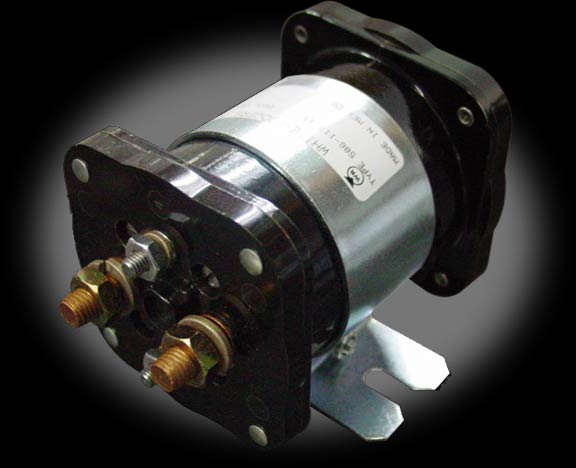

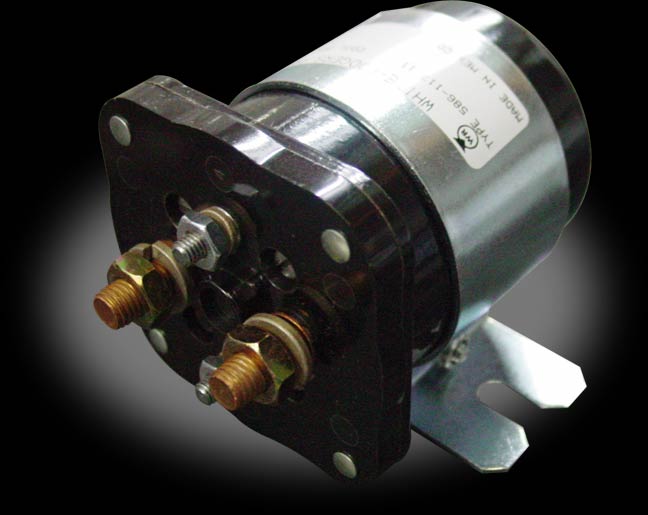

586 Series Solenoid

This is the big boy, a very popular solenoid to activate spinning weapons in larger weight classes. This is the solenoid used in more robots than any other popular unit. Rated for continuous duty. White Rodgers brand.

Statistics:
* 200 amps continuous
* 600 amps inrush (at least!)
* Silver contacts
* Durable, sealed phenolic housing
* Steel mounting bracket
* Isolated coil
* 5/16" copper terminals (washers and extra nuts included)
* weight: 24oz SPNO, 26oz SPDT

Pair up this solenoid with one of the Team Delta RC Switches, or the Robotic Sporting Goods R/C Switches for a complete robot weapon activation system for motors as large as the HUGE Etek Motor!

Our Most Popular Solenoid!

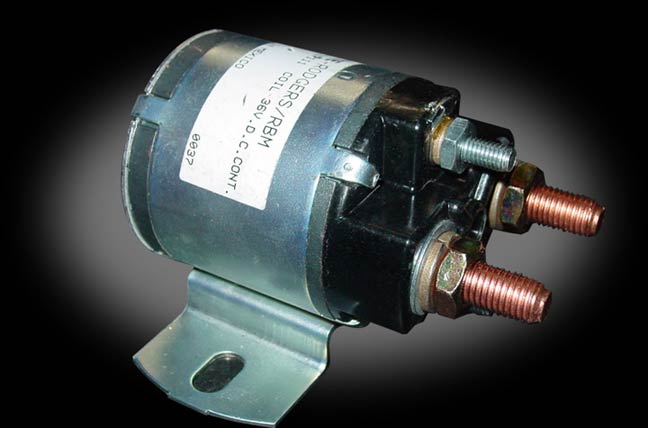

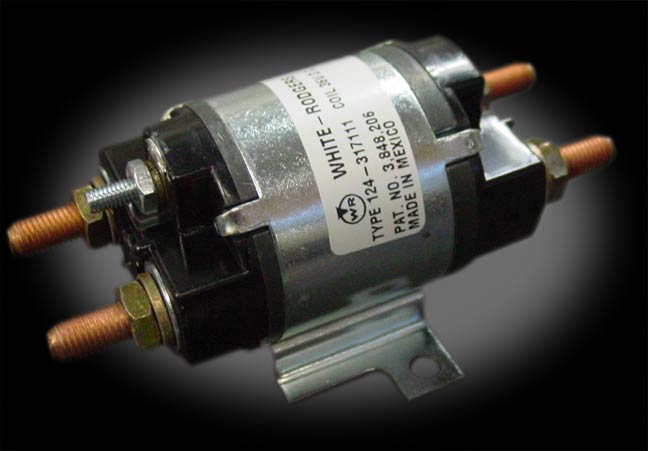

124 Series Solenoid

A great solenoid, not quite as large as the 586 series, but can still handle some of the big motors out there. Rated for continuous duty. White-Rodgers brand.

Statistics:
* 100 amps continuous
* 400 amps inrush
* Silver contacts
* Durable, sealed phenolic housing
* Steel mounting bracket
* Isolated coil
* 5/16" copper terminals (washers and extra nuts included)
* weight: 16.0oz SPNO, 19.0oz SPDT

Pair up this solenoid with one of the Team Delta RC Switches, or the Robotic Sporting Goods R/C switches for a complete robot weapon activation system for large motors.

120 Series SPNO Solenoid

A great, lightweight solenoid for smaller robots (30-120lb), saves weight, but can still handle some decent current. White-Rodgers brand.

Statistics:
* 100 amps continuous
* 400 amps inrush
* Silver contacts
* Durable, sealed phenolic housing
* Steel mounting bracket
* 5/16" copper terminals
* weight: 6oz

Pair up this solenoid with one of the Team Delta RC Switches, or the Robotic Sporting Goods R/C switches for a complete robot weapon activation system.

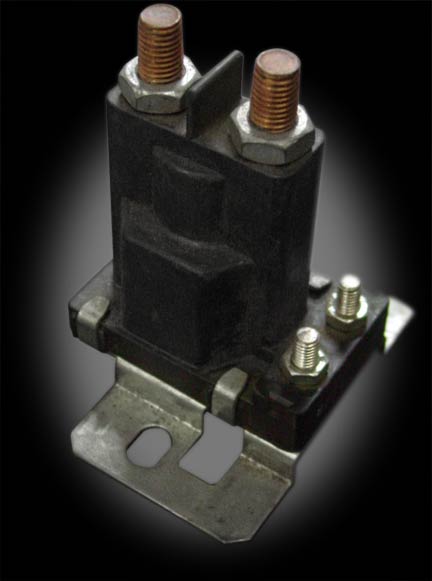

70 Series SPNO Solenoid

A lighter duty solenoid than some of the big guys above, but still rugged enough for some of the smaller robot weight classes. White-Rodgers brand.

Statistics:
* 80 amps continuous
* 400 amps inrush
* Copper contacts
* Durable, steel housing
* Isolated coil
* Steel mounting bracket
* 5/16" copper terminals
* weight: 14oz

Pair up this solenoid with one of the Team Delta RC Switches, or the Robotic Sporting Goods R/C switches for a complete robot weapon activation system.
