EV Warrior Motors are
SOLD OUT!

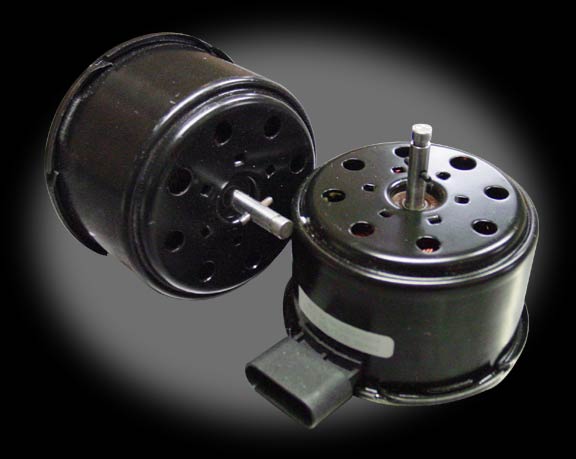

EV Warrior Motor

Unfortunately, we have completely sold out of EV Warrior motors, and have exhausted all future sources for these discontinued motors.

We will leave the information here for a while for those looking for the stats and data on these motors.

Thanks to all for making this such a popular motor over the years!

Weight 3.24 lb
Diameter 4.0"
Length 2.72"
Shaft 8mm dia x 30mm

CCW EV  (timed to spin slightly faster CCW than CW)
  12v 24v
No load rpm 2210 rpm 4480 rpm
Peak Horsepower .378 hp 1.55 hp
No load current 2.6 A 2.6 A
Stall current 99.2 A 198 A
Stall torque 691 oz-in 1400 oz-in

When installing, you will notice there are 3 pins on the connector of this motor, you may ignore the center one and hook your + and - to the outer two pins. Reverse the polarity to reverse direction of the motor (or just let your speed controller do that for you).

A great tutorial on how to change the timing of your EV motor can be found here.

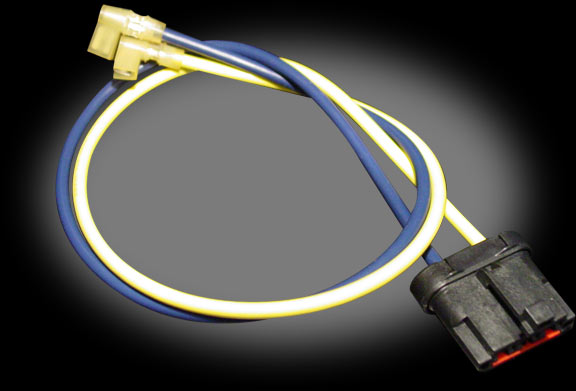

EV Warrior Cable Connectors

A very durable plug-in style connector for your EV motors.

Cables include EV motor connector at one end, and spade-style connectors on the other, as shown in the photo. You can cut off the connectors if you want to use your own. Wires are approximately 18" long. Provides a very solid connection for the wires to the rest of your system.

Note: you don't need to hook up the center pin of the EV motor in most cases. If you're using it on a robot, just use the outer two wires to go to your power source positive and negative. This cable only utilizes the two outer pins as standard on most motors.

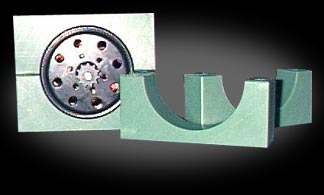

EV Warrior Motor Mount

The perfect, light weight solution to mounting the very popular EV Warrior motors.

Made from Green UHMW. This very interesting material is very light, yet surprisingly strong. Polyethylene UHMW has a high melt viscosity, has outstanding toughness and cut/wear resistance and very good chemical resistance.

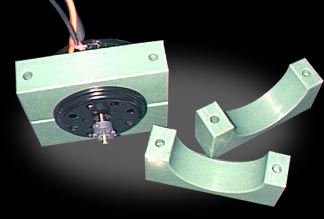

Stock EV Mount
Clamp style mounts, standard 1/4" mounting holes.

Dimensions:
6" wide, 5" tall, 1.25" thick
only 13.5 oz each!



The charts on this page are courtesy Enigma Industries, makers of the very useful Electric Drive Train Simulator!
