Click
for large view
|

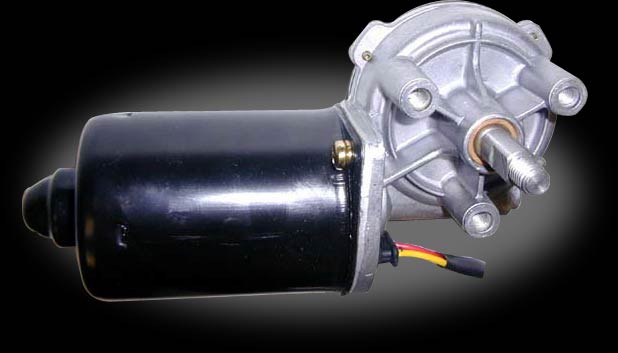

AME 12v 212 in-lb gearmotor (218-1001, 218-2001, 218-2003) This is a lightweight, yet still very tourquey left or right-handed (you choose which) gearmotor from AM Equipment that was originally made to be used as a car windshield wiper motor. This is a pretty good value in torque per weight as well. Perfect for small to mid-sized robot applications. Unfortunately, the 218-2003 is only available in a RH configuration, but you can just flip it around to use in a LH situation. Best of all, at 116 RPM, you don't have to gear it down!
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click photos
for large views
|

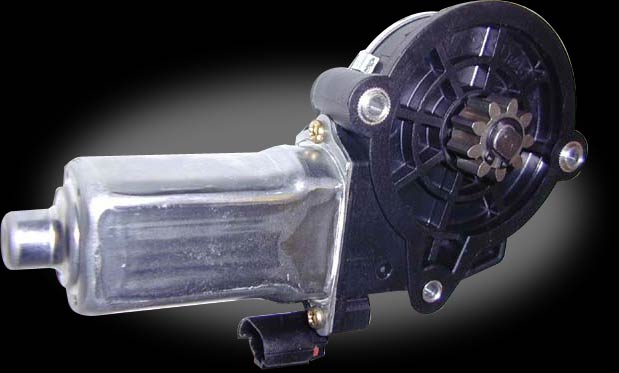

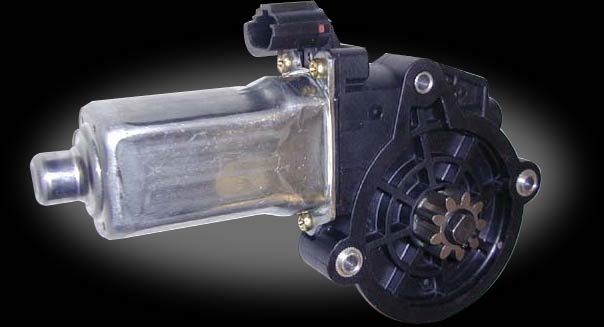

AME 12v 88 in-lb gearmotor w/pinion (210-1009 - 210-1012) This is a great, inexpensive, gearmotor from AM Equipment that was originally made to be used as a car window lifting motor. There are two types of this motor to choose from-left hand or right hand. Both have a pinion on the output and would be great for driving a chain or even a wheel directly in the middle to small weight classes. A version with a double-D shaft is also available. This is one of the 5 fastest of the gearmotors that AME offers, at 100 RPMs -Which is a great speed to have a bot's drive gearmotor run, and makes for some very simple math!
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click
for large view
|

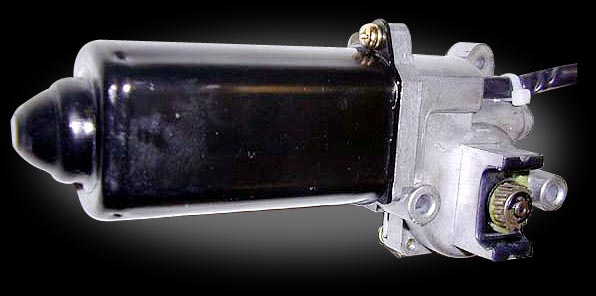

AME 12v 26 in-lb motor (203-5000) This is a great little gearmotor from AM Equipment that was originally made to be used as a sunroof retracting motors in cars. Perfect for small robot applications such as the drive motors for a featherlightweight robot, or maybe for some other system in your bot. This is obviously AME's smallest and lightest motor at 1.35 Lbs, and less than 6 & 1/2 inches long. -The neat thing about it is, of all of AME's great gearmotors, this is the very fastest of the bunch at 165 RPM! This motor is manufactured by AM Equipment. It has built in gear reduction, a circuit breaker, and 0.1 µF noise suppression capacitor.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click
for large view
|

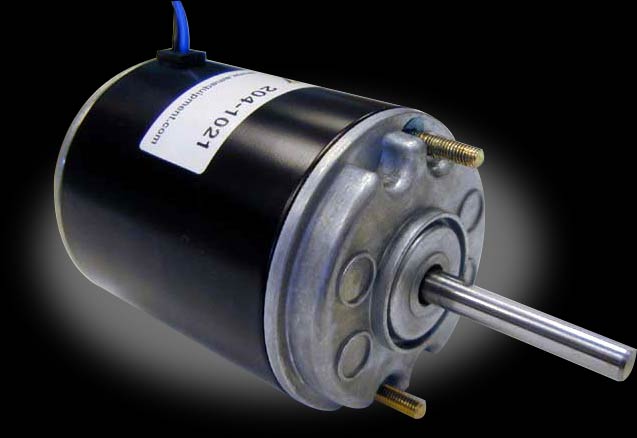

AME 12v Blower motor (204-1021) This is a great, but much smaller than usual, motor from AM Equipment that was originally made to be used as a blower motor. Perfect for small robot apllications such as the drive motors for a featherlightweight through lightweight robot, this is AME's second fastest motor at 4,200 RPMs. -So naturally you'll want to gear it down somehow first.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click for large
view
|

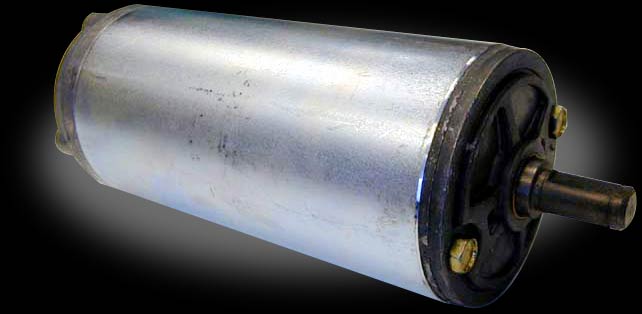

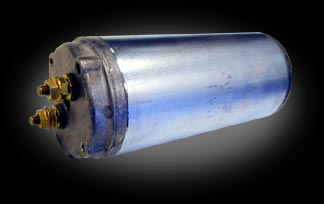

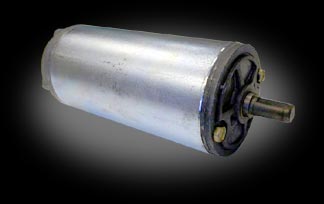

This is the famous 'D-Pack' motor from AM Equipment that you've all heard such good things about. These powerful devils live up to these words, and have been used many times at Treasure Island and are loved by many. The only complaint is that they can draw too MUCH power, so make sure you have a switch or ESC that can handle it, or a current limiting circuit would be the best answer. These motors work great for bots with KE spinner weapons. This is the motor that Backlash used to smash his way to the championship in BattleBots Season 1.0. The motor has a timing advanced in the clockwise direction, the difference between clockwise and counter-clockwise is minimal. Not listed in the motor measurements page for some reason is the diameter- it is 3.073"
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
