OVERVIEW A high-resolution image or video can be useful for many professions such as building inspectors, appraisers, contractors, cable and telephone line installation, and security applications. We are working on a long range version of this unit for serious professional applications. The wireless video system on the MMP-8 platform offers great picture quality and a great operating range for an FCC legal system on the 2.4 GHz frequency. The wireless kits have 4 switch-able channels that allows multiple cameras or multiple monitors to be used in the same area or on the same frequency. Law enforcement and professional agencies can inquire about options and custom system packages.
|
|
|||
click
for larger view
|

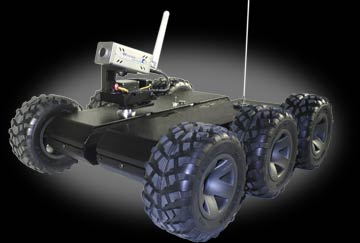

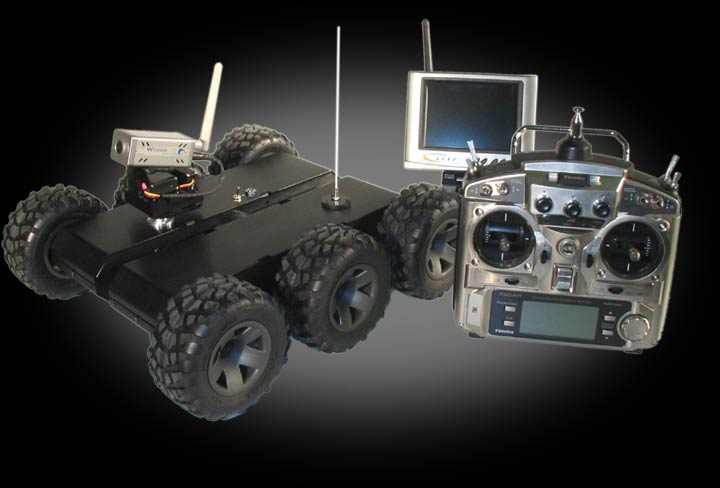

Fully Assembled MMP-8 Mobile Camera Unit
What
else you need: Camera/Platform
packages are covered by a 60 day warrantee MMP-8
MOBILE WIRELESS CAMERA packages take an extra 5-7 business days
to assemble and ship
|
|||
Individual Components If you purchase any of these individual components for your existing MMP-8 Camera Unit, instead of the complete, assembled MMP-8, the labor and installation are up to you, these are provided soley for individuals configuring their own setup. When you purchase the assembled MMP-8, all labor and programming is included in the cost. |
||||
click
for larger view
|

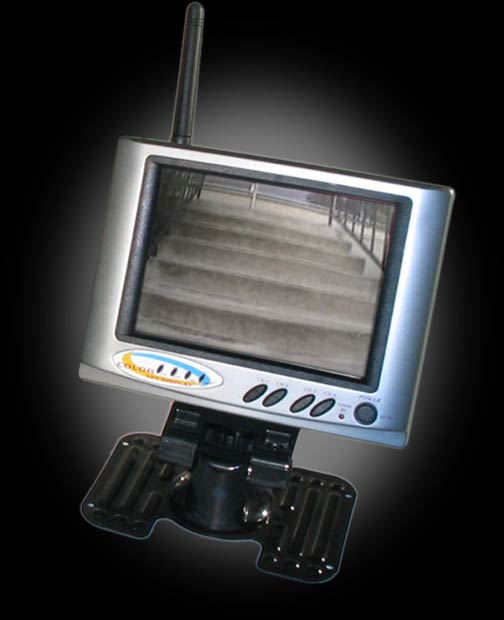

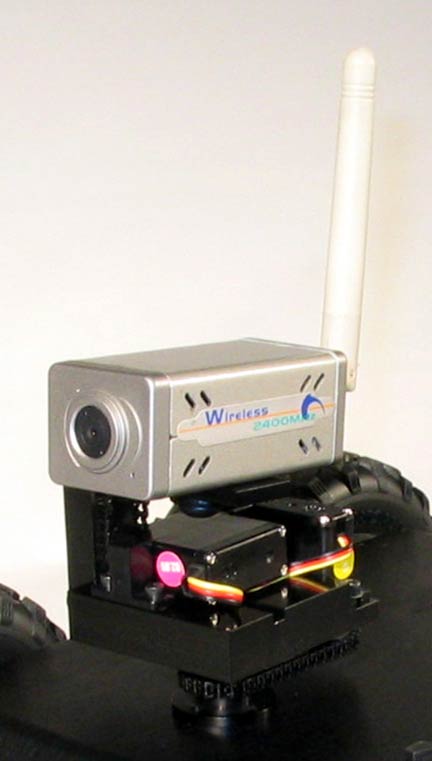

2.4Ghz Wireless Color Video Camera with 5.6" Color LCD - built-in wireless A/V receiver kit The
Camera/Monitor kit comes with:
|
|||
click
for larger view
|

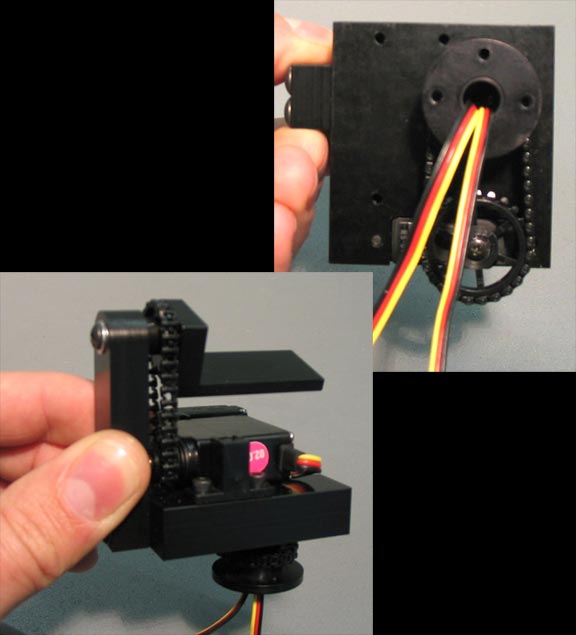

Pan/Tilt camera mechanism The pan/tilt is actuated by hobby servos via chain drive. The servos are controllable with the standard PWM signal from hobby radios and many micro controllers such as the Basic Stamp. The pan/tilt allows for a great range of view as well as the ability to glance at the frontal extremes of the robot while you are driving. One of the unique features of these pan/tilt units is that the servo leads are routed down through the center of the pan shaft of the unit into the chassis of the robot platform. This keeps the wiring clean and keeps the leads from limiting the range of motion of the mechanism. The pan/tilt unit has 140 degrees of pan range and 70 degrees of tilt range with wireless camera. Tilt range can be increased with different cameras |
|||
click
for larger view
|

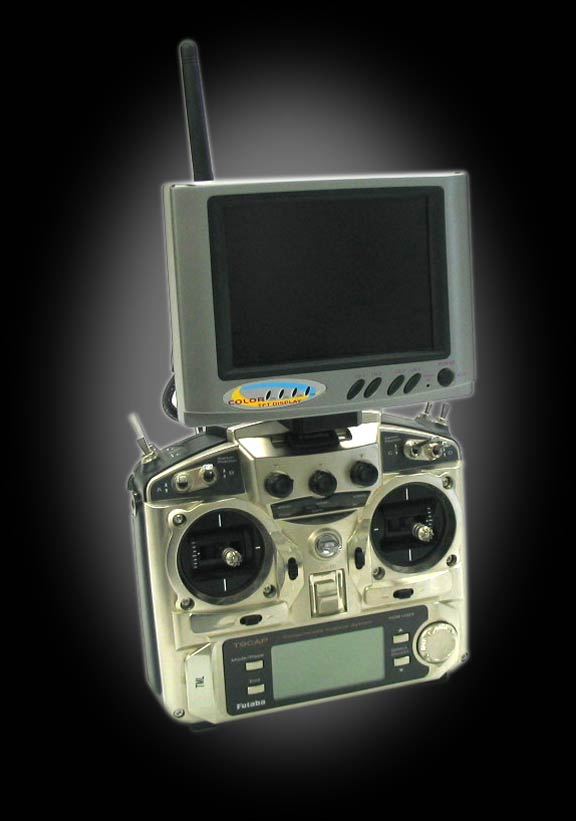

Controller

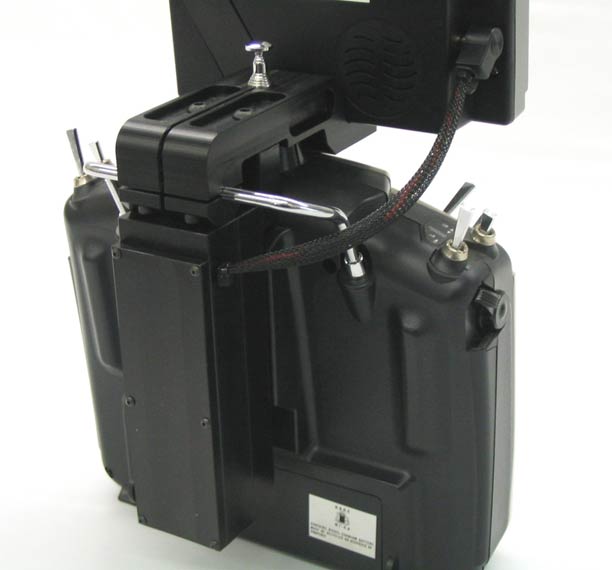

Display Mount and Power Pack View what your inspection system is seeing, right from your controller! - Perfect fit for the 5-inch LCD screen with build-in receiver. - Custom monitor mount for Futaba 9CAP or 7CAP radio. - Clamps directly to controller without modification to radio system. - 9.6 volt rechargeable power pack to supply power to the monitor/receiver system . -
Easy to use- Power plug for easy recharging and single lead for
monitor power
|
|||
 |
||||
click
for large view
|
9.6 - 18V Universal Smart Charger A convenient, simple and basic battery charger that does NOT need a separate power supply, you can run this one right from a standard wall outlet. *
AC 120-240V input with standard wall plug
|
|||
|
||||
