Looking for a perfect solution for mounting BattleTread tires?

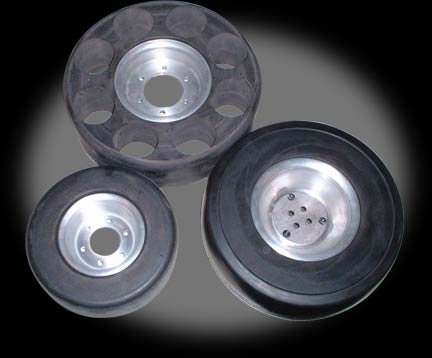

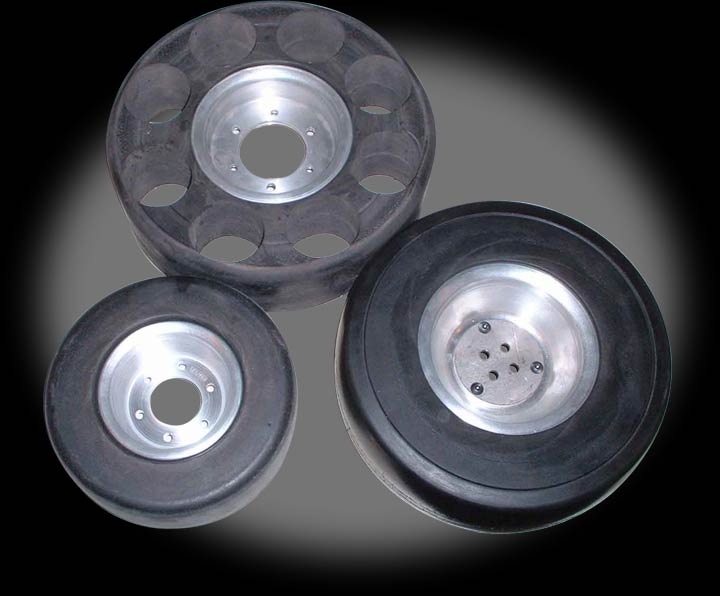

These lightweight, spun aluminum rims are perfect for durability and light weight.

Each rim is available with a Titanium disc for mounting directly to the NPC T-series motor's 4-bolt shaft pattern.

Check the Carefree BattleTread tire page to select your tires.

Note that these rims have a 'shallow' and a 'deep' side to them, you can choose to mount either side on the outside, depending on your overall design and hub integration.

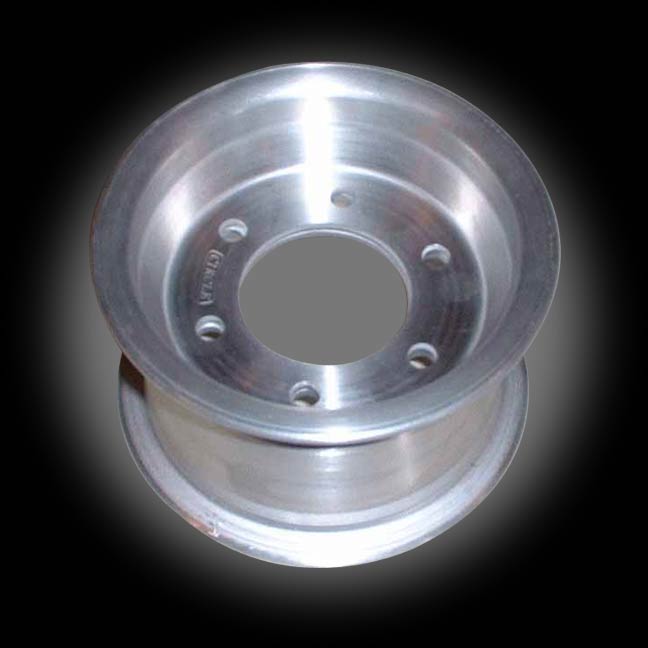

4" Diameter rims - Narrow (Model 4N)

Two piece split rim, made from spun aluminum.

Fits 4" tires up to 2.25" wide

9.9 oz (including mounting bolts and Titanium adapter disc)

Hole centers are on 2.5" radius, 6 holes
Weight per side: 3.59oz

4" Diameter rims - Wide (Model 4W)

Two piece split rim, made from spun aluminum.

Fits 4" tires OVER 2.25" wide

10.2 oz (including mounting bolts and Titanium adapter disc)

Hole centers are on 2.5" radius, 6 holes
Weight: small side 3.59oz, big side 4.28 oz

5" Diameter rims - Narrow (Model 5N)

Two piece split rim, made from spun aluminum.

Fits 5" tires up to 2.5" wide

14 oz (including mounting bolts and Titanium adapter disc)

5N is DISCONTINUED

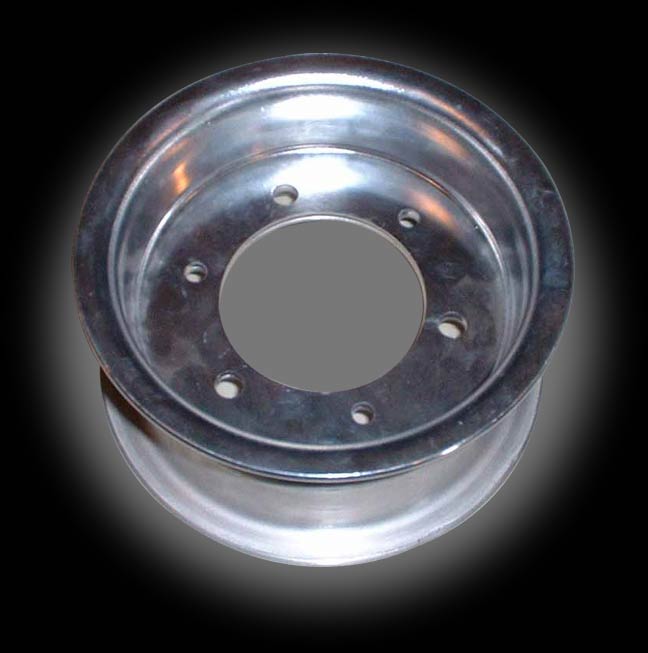

5" Diameter rims - Wide (Model 5W)

Two piece split rim, made from spun aluminum.

Fits 5" tires OVER 2.5" wide

15.2 oz (including mounting bolts and Titanium adapter disc)

Titanium Hub Adapter Disc

1/8" Thick 6-4 Titanium adapter disc for direct mounting to NPC T-series gearmotors.

Measurements:
