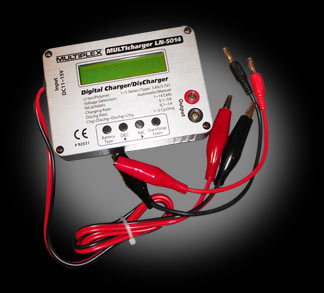

Multiplex MULTIcharger LN-5014 Charger

The LN-5014 will safely charge and discharge all Lithium, NiCad, NiMh and Lead-Acid battery packs and cells. An easy to read, Illuminated digital LCD screen displays battery type, charge/ discharge, mAh, voltage and charging time, enhancing the charging experience. To insure proper use, the LCD screen will also display error messages for out-of range input voltage, incorrect connection or reversed polarity, poor battery condition and internal errors. It even includes discharging and cycling functions. This easy to use charger, with its 4 button control panel and logical menus, is compact and simple to transport.

Compatible with:
NiCad/NiMh packs 1-14 cells from 0.1 to 4.0 Amps.
LiPoly/Li-Ion packs 1-5 cells from 0.1 to 5.0 amps. You can adjust the charge rate in 0.1 amps increments which makes it VERY useful for all makes and sizes of Li-Poly batteries.
Lead Acid/SLA batteries 1-6 cells

Dimensions: 4.5" x 3.5" x 1/2"
Weight: 9.4 oz
DC Input: 11-15V DC

The LN-5014 is very easy to use and its compact design offers similar to many chargers over twice the price!

Note: This charger requires either an external 12VDC Power Supply or Battery, it does NOT plug in to 110V AC power

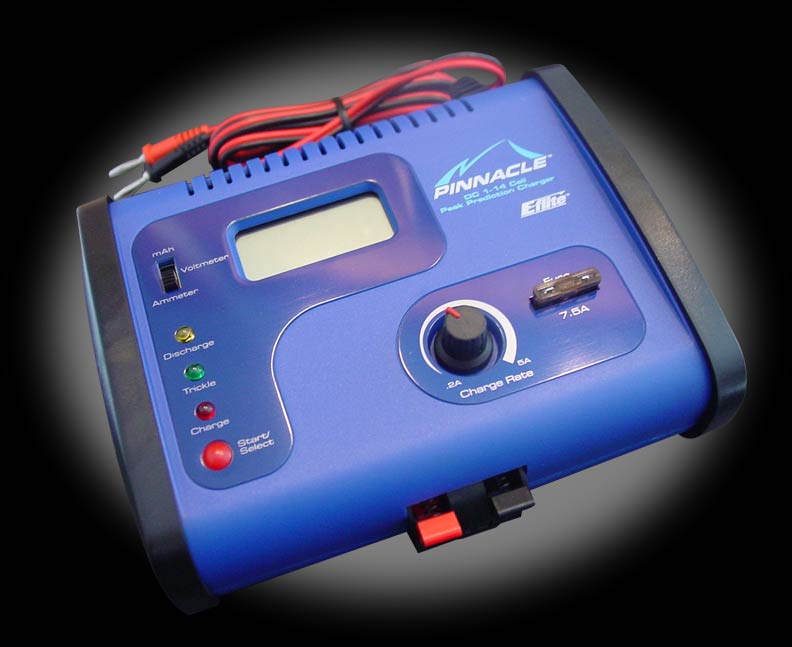

Pinnacle DC 1-14 cell Peak Charger

State of the art peak prediction circuirtry predicts when a battery peaks, preventing overcharging.

FEATURES
-
Advance peak prediction circuitry
- Charges,discharges and trickle charges
- LCD screen displays amperes, voltage
- LED and sound indicators easil y identify
- Variable Charge Rate: .2A to 5A
- Discharges batteries for maximum performance
- Banana plugs with alligator clip
- Receiver, BEC, transmitter and Tamiya style plugs included

Battery Types : Nickel-Cadmium (NiCd), Nickel-Metal Hydride (NiMH)
Number of Cells : 1-14 NiCd or NiMh (1.2-16.8V)
Charger Ports (2 sets) : Banana Plugs
Charge Current: 200-5000mA
Discharge Current: depends on cell qty, usually about 2-3A

Input Voltage (DC): 11-14.5VDC

Case Size: 5.25 x 6.75 x 2.5 inches
Weight: 18.6oz




Astroflight 112 Deluxe Charger/Discharger

* Charges 1 cell to 40 cell Nicad or Nimh battery packs (1.2-48V).
* Charges any cell capacity from 50 mahr to 10,000 mahr.
* Charge current adjusts from 50 milliamps to 8 amps.
* Charge Mode has Auto-Peak and 10 hour time limit.
* Discharges battery at 1.25 amps and Auto-Turn off.
* Digital Display of Charging Amps from 50 ma to 8.0 Amps.
* Digital Display of Nicad Voltage from 500 mv to 66.0 Volts.
* Digital Display of charge time, hours, minutes and seconds.
* Digital Display of total amp-hours of charge put into battery .
* Digital Display of maximum nicad voltage (voltage peak).
* Charger has a built in 12 Volt Brushless Cooling Fan.
* Charger works with any 12 Volt automobile or truck battery.
* Charger Works with Astro Model 120, 13.8V power supply.
* Protected from reverse polarity on both input and output.

Note: This charger requires either an external 12VDC Power Supply or Battery, it does NOT plug in to 110V AC power




Astroflight 110 Deluxe Charger/Discharger

* Charges 1 cell to 24 cell Nicad or Nimh battery packs(1.2-28.8V).
* Charges any cell capacity from 50 mahr to 7,000 mahr.
* Charge current  adjusts from 50 milliamps to 8 amps.
* Charge Mode has Auto-Peak and 10 hour time limit.
* Discharges at 1.25 amps and has Auto-Turn off.
* Digital Display of Charging Amps from 50ma to 8 amps.
* Digital Display of Nicad Voltage from 500 mv to 40 volts.
* Digital Display of charge/discharge time, hrs, min. and sec.
* Digital Display of total mahr of charge into or out of battery.
* Digital Display of maximum voltage reached (voltage peak).
* Charger works with any 12 Volt automobile or truck battery.
* Charger works with Astro Model 120, 13.8V power supply.
* Protected from reverse polraity on both input and output

Note: This charger requires either an external 12VDC Power Supply or Battery, it does NOT plug in to 110V AC power

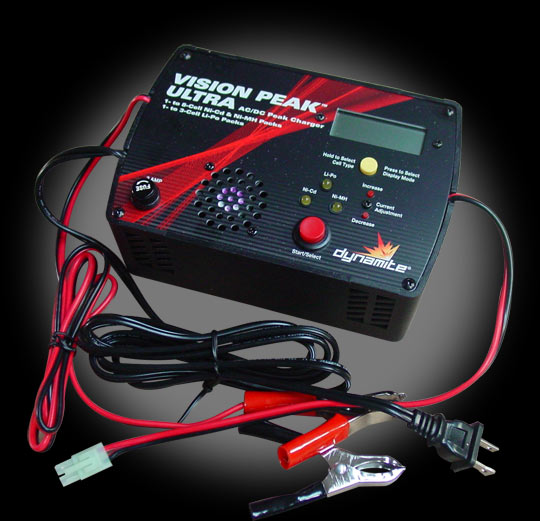

Dynamite - Vision Peak Ultra AC/DC Charger

Charges NiCad, NiMh (up to 9.6V), and Lithium based battery packs (up to 11.1V). Includes a built-in Power Supply so you can plug into household AC, OR still use 12V DC input.

FEATURES
-
Adjustable charge rate from .1 to 2.5 amps for Li-Poly batteries
- Adjustable charge rate from .1 to 5.0 amps for NiCD and NiMH batteries
- Automatic trickle charge
- LCD display shows charge time, current, voltage, and peak voltage
- LED indicator and audible beep for charge status
- Fuse protection on inputs
- Ventilated case with cooling fan
- Limited 5 year warranty


Battery Types : Nickel-Cadmium (NiCd), Nickel-Metal Hydride (NiMH)
Lithium-Polymer (Li-Po), Lithium-Ion (Li-Ion)
Number of Cells : 1-8 NiCd or NiMH (1.2-9.6V), 1-3 Li-Po or Li-Ion (3.6-11.1 V)
Input Voltage (DC): 11-14.5VDC

Input Voltage (AC): 110VAC (with included power supply)

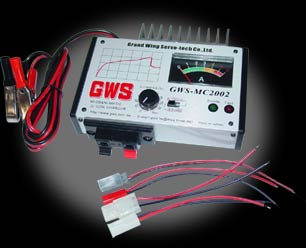

GWS-MC2002 Charger

GWS Microprocessor Controlled Battery Charger with Automatic Delta Peak for both Ni-Cd and Ni-MH Battery Packs.

* Input Voltage Range: DC 9.0 ~ 15.0 V
* Charging Current: 0.25 ~ 6.00A Continuous
* Battery Types: 50 mAh ~ 3000 mAh Ni-Cd or Ni-MH
* Cells: 4 - 12 Cells (4.8 - 14.4V)
* Comes with FOUR different types of connectors for various brands and types of battery packs
* Cut-off: Microprocessor Controlled Automatic Delta-Peak Cut-off
* Protection: Output Reverse Polarity and Short Protection
* Maximum Charge Time: 90 Minutes with Safety Cut-off
* Readout: Large Scale Current Meter
* Cooling: Sturdy Aluminum Case with Heavy Duty Heat Sink

Note: This charger requires either an external 12VDC Power Supply or Battery, it does NOT plug in to 110V AC power

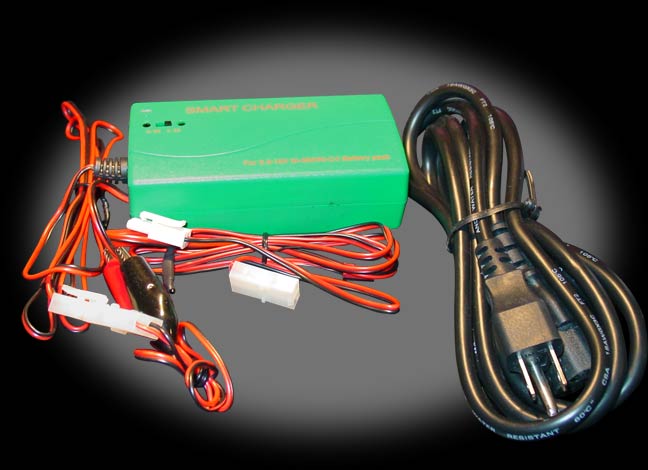

9.6 - 18V Universal Smart Charger

A convenient, simple and basic battery charger that does NOT need a separate power supply, you can run this one right from a standard wall outlet.

* AC 120-240V input with standard wall plug
* Charging Current: selectable 0.9A or 1.8A
* Battery Types: 50 mAh ~ 3000 mAh Ni-Cd or Ni-MH
* Cells: 8 - 15 Cells (9.6V -18V) do NOT attempt to charge packs less than 9.6V or over 18V
* Automatically detects battery voltage. Red LED will be on during charging
* Fused protection for overcurrent, short circuit, or reverse polarity.
* One standard Tamiya-style connector installed
* Adapter cable for optional charging with clips

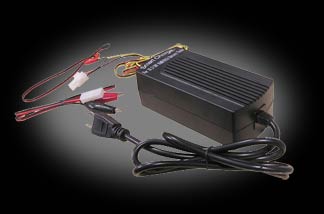

19.2-24V Universal Smart Charger

A convenient, simple and basic battery charger that does NOT need a separate power supply, you can run this one right from a standard wall outlet.

* AC 120-240V input with standard wall plug
* Charging Current: 1.5A
* Battery Types: 2000 mAh ~ 3000 mAh Ni-Cd or Ni-MH
* Cells: 16 - 20 Cells (19.2 - 24.0V) do NOT attempt to charge packs less than 19.2V or over 24V

* Temperature sensor included, attach to the pack while charging so that the charger can monitor the temperature during the charge, and cuts off if the pack overheats.
* Automatically detects battery voltage. Red LED will be on during charging
* Automatically switches to trickle charge when battery pack is almost full, then changes to green LED.
* One standard Tamiya-style connector installed
* Adapter cable for optional charging with clips
* Dimensions: 2.0" x 2.7" x 5.8" , 15 oz
