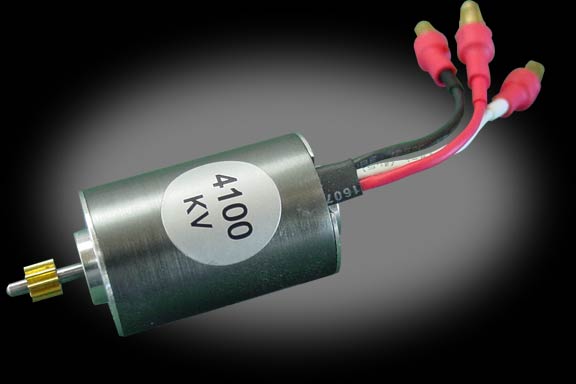

Park 370-4100KV 'Inrunner' Brushless Motor

Brushless motors are becoming more and more popular for people who need to cram an insane amount of power in a small package, so why do they cost so much? Well, now there is a line of inexpensive yet powerful brushless motors where you get a LOT more than you pay for.

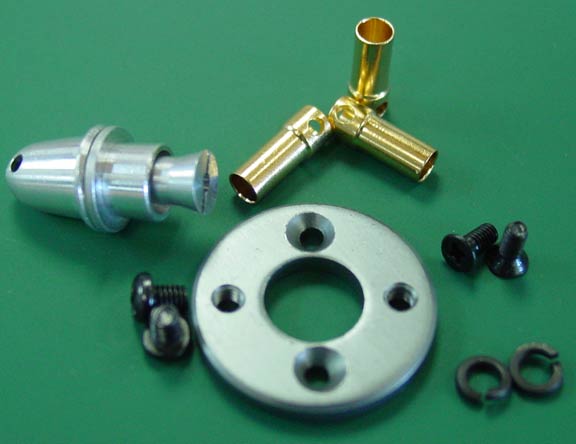

The EFL-370 motor package includes several extras: The motor, an adapter ring, 10T pinion (removable), fasteners, prop adapter, and gold-plated connectors.

Part Number EFLM1000
Voltage 7.2 - 21.6 V
Speed

4100 rpm per V
(almost 50,000 at 12V!)
Current 2-5A nominal, 6A max.
Diameter 0.787" (20mm)
Length 1.18" (30mm)
Weight 1.68oz (47.6g)
Shaft size 2mm

These motors require special Brushless controllers to work properly, we highly recommend combining this motor with our Phoenix-10 controller.

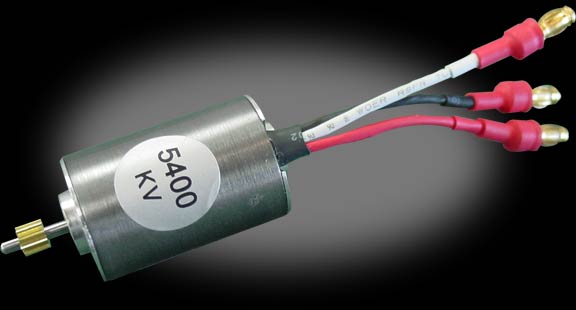

Park 370-5400KV 'Inrunner' Brushless Motor

This is the same size motor as the EFL-370-4100, just with a different winding for higher speed- at the same price!

Use where you previous operated Speed 370 or Speed 280 motors- more power, smaller, and less weight!

The EFL-370 motor package includes several extras: The motor, an adapter ring, 10T pinion (removable), fasteners, prop adapter, and gold-plated connectors.

Model Number EFLM1005
Voltage 7.2 - 16.8 V
Speed

5400 rpm per V
(almost 65,000 at 12V!)
Current 2-6A nominal, 8A max.
Diameter 0.787" (20mm)
Length 1.18" (30mm)
Weight 1.68oz (47.6g)
Shaft size 2mm

These motors require special Brushless controllers to work properly, we highly recommend combining this motor with our Phoenix-10 controller.

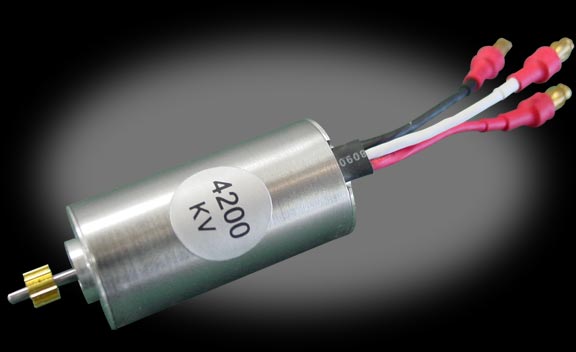

Park-400-4200KV 'Inrunner' Brushless Motor

When you need serious power and are done using wimpy motors, you'll be amazed at the output of this one! A step up from the 370 motors, this model is a good use where you previously used a Speed 400 motor.

The EFL-400 motor package includes several extras: The motor, an adapter ring, 10T pinion (removable), fasteners, prop adapter, and gold-plated connectors.

Model Number ELFM1100
Voltage 7.2 - 14.4 V
Speed

4200 rpm per V
(over 50,000 at 12V!)
Current 2-13A nominal, 18A max.
Diameter 0.787" (20mm)
Length 1.57" (40mm)
Weight 2.4oz (68g)
Shaft size 2mm

These motors require special Brushless controllers to work properly, we highly recommend combining this motor with our Phoenix-25 controller.

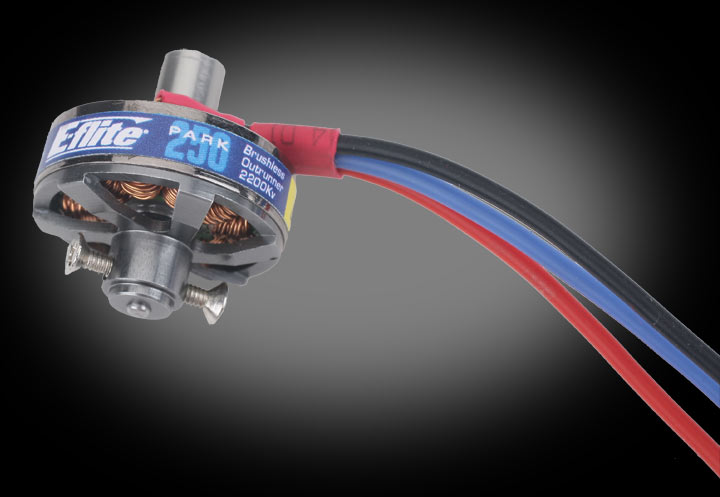

Park 250 Outrunner Brushless Motor - 2200Kv

This is about the smallest brushless motor we've seen! Great for models and robots where space and weight are limited, but you need as much power as possible.

Ideal for small models and miniature combat robots! Tons of power in a very small brushless motor. High quality construction with ball bearings and hardened steel shaft. Extremely quiet and lightweight- half an ounce is all!

Includes mount, mounting hardware and 2mm gold BL connectors.


Size: upgrade for 180-size motors
External rotor design with front shaft for easy mounting
Model Number EFLM1130
Voltage 6.0 - 8.4 V
Speed

2200 rpm/V (nearly 18,500 at 8.4V!)

Current 1-7A nominal, 8A max.
Diameter 0.867" (22mm)
Length 0.90" (23mm)
Weight 0.5 oz (14g)

These motors require special Brushless controllers to work properly, we highly recommend combining this motor with our Phoenix-10 controller.







Park 370 Outrunner Brushless Motor - 1360KV

The future of small electric motors is here. This is serious power in a tiny package. The power of an outrunner motor in a very affordable price. This thing will blow you away at it's small size (only 1.6 ounces) yet with undeniable power! Awesome torque- in most cicrumstances, you won't need to use a gearbox! Use as an upgrade where you may have used a speed 280 or 370.

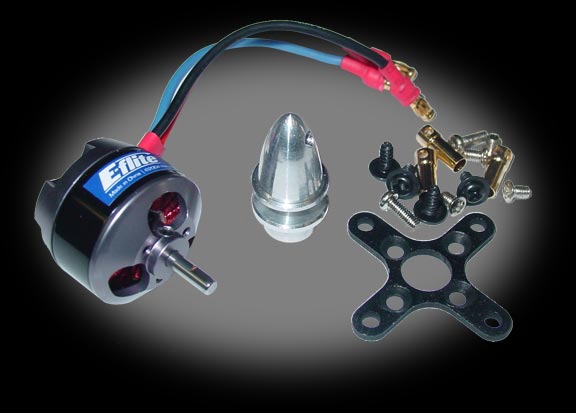

The Park 370 motor package includes several extras: The motor, Motor mount, prop adapter, hardware and gold bullet connectors all included!

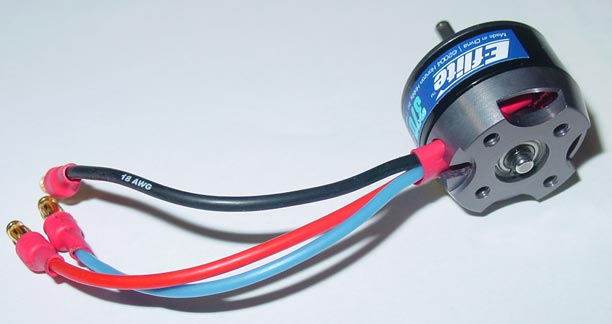

Rear view photo:

Slotted 12-pole outrunner design
External rotor design with front shaft for easy mounting
Model Number EFLM1205
Voltage 7.2 - 14.4 V
Speed

1360 rpm per V
(over 16,000 at 12V!)
Current 1-13A nominal, 18A max.
Diameter 1.10" (28mm)
Length 0.98" (25mm)
Weight 1.6oz (45g)
Shaft size 3mm

These motors require special Brushless controllers to work properly, we highly recommend combining this motor with our Phoenix-25 controller.







Park 370 Outrunner Brushless Motor - 1080KV

A little different winding than the 1360 motor above, this is serious power in a tiny package. The power of an outrunner motor in a very affordable price. This thing will blow you away at it's small size (only 1.6 ounces) yet with undeniable power! Awesome torque- in most cicrumstances, you won't need to use a gearbox! Use as an upgrade where you may have used a speed 280 or 370.

The Park 370 motor package includes several extras: The motor, Motor mount, prop adapter, hardware and gold bullet connectors all included!
Rear view photo:

Slotted 12-pole outrunner design
External rotor design with front shaft for easy mounting
Model Number EFLM1200
Voltage 7.2 - 14.4 V
Speed

1080 rpm per V
(almost 13,000 at 12V!)
Current 1-13A nominal, 18A max.
Diameter 1.10" (28mm)
Length 0.98" (25mm)
Weight 1.6oz (45g)
Shaft size 3mm

These motors require special Brushless controllers to work properly, we highly recommend combining this motor with our Phoenix-25 controller.
