SBPFL 2 BOLT
FLANGE BEARING

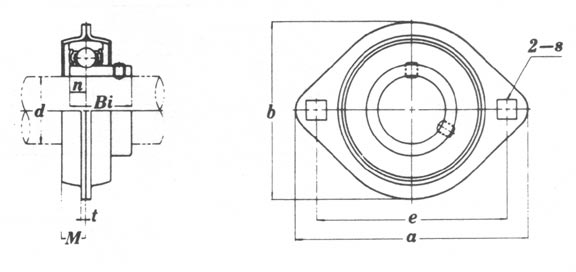

Use the chart
below to select your desired size
Shaft
Size |
a |
e |
M |
b |
t |
s |
n |
Bolt
size |
Bi |
Max
load |
Max
rpm |
Weight |
1/2" |
3-3/16" |
2-1/2" |
9/32" |
2-5/16" |
2.0
mm |
9/32" |
0.2362" |
1/4" |
0.8661" |
1100
lb |
5800 |
0.42
lb |
5/8" |
3-3/16" |
2-1/2" |
9/32" |
2-5/16" |
2.0
mm |
9/32" |
0.2362" |
1/4" |
0.8661" |
1100
lb |
5800 |
0.42
lb |
3/4" |
3-17/32" |
2-13/16" |
11/32" |
2-5/8" |
2.0
mm |
11/32" |
0.2756" |
5/16" |
0.9843" |
1216
lb |
5800 |
0.53
lb |
7/8" |
3-3/4" |
3" |
13/32" |
2-25/32" |
2.0
mm |
11/32" |
0.2953" |
5/16" |
1.0630" |
1350
lb |
5100 |
0.62
lb |
1" |
3-3/4" |
3" |
13/32" |
2-25/32" |
2.0
mm |
11/32" |
0.2953" |
5/16" |
1.0630" |
1350
lb |
5100 |
0.62
lb |
1-1/8" |
4-7/16" |
3-9/16" |
7/16" |
3-5/16" |
2.6
mm |
13/32" |
0.3150" |
3/8" |
1.1811" |
1833
lb |
4300 |
0.84
lb |
1-3/16" |
4-7/16" |
3-9/16" |
7/16" |
3-5/16" |
2.6
mm |
13/32" |
0.3150" |
3/8" |
1.1811" |
1833
lb |
4300 |
0.84
lb |
1-1/4" |
4-7/16" |
3-9/16" |
7/16" |
3-5/16" |
2.6
mm |
13/32" |
0.3150" |
3/8" |
1.1811" |
1833
lb |
4300 |
0.84
lb |
