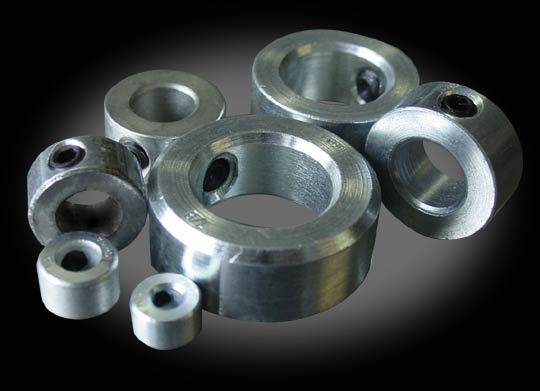

These zinc-plated
shaft collars are precision-machined from
cold finished steel and are equipped with cup point socket setscrews.
Shaft
Collars |
|
Bore |
O.D. |
Width |
Set
Screw
Size |
Weight
(oz) |
1/8" |
3/8" |
1/4" |
6 x 1/8" |
0.1 |
3/16" |
7/16" |
1/4" |
8 x 1/8" |
0.2 |
1/4" |
1/2" |
5/16" |
10 x 1/8" |
0.2 |
5/16" |
5/8" |
5/16" |
10 x 1/8" |
0.3 |
3/8" |
3/4" |
3/8" |
1/4 x 3/16" |
0.5 |
7/16" |
7/8" |
7/16" |
1/4 x 1/4" |
0.8 |
1/2" |
1" |
7/16" |
1/4 x 1/4" |
1.1 |
9/16" |
1" |
7/16" |
1/4 x 1/4" |
1.0 |
5/8" |
1-1/8" |
1/2" |
5/16 x 1/4" |
1.5 |
11/16" |
1-1/4" |
9/16" |
5/16 x 1/4" |
2.0 |
3/4" |
1-1/4" |
9/16" |
5/16 x 1/4" |
1.9 |
7/8" |
1-1/2" |
9/16" |
5/16 x 1/4" |
2.4 |
1" |
1-5/8" |
5/8" |
5/16 x 5/16 " |
3.7 |
1-1/16" |
1-3/4" |
5/8" |
5/16 x 5/16 " |
4.0 |
1-1/8" |
1-3/4" |
5/8" |
5/16 x 5/16 " |
3.9 |
1-1/4" |
2" |
11/16" |
3/8 x 3/8 " |
5.8 |
1-3/8" |
2-1/8" |
3/4" |
3/8 x 3/8 " |
6.5 |
1-1/2" |
2-1/4" |
3/4" |
3/8 x 3/8 " |
7.4 |
1-5/8" |
2-1/2" |
13/16" |
3/8 x 3/8 " |
10.4 |
1-3/4" |
2-5/8" |
7/8" |
1/2 x 1/2" |
13.6 |
2" |
3" |
7/8" |
1/2 x 1/2" |
16.0 |
2-1/4" |
3-1/4" |
15/16" |
1/2 x 1/2" |
18.0 |
2-3/8" |
3-1/4" |
15/16" |
1/2 x 1/2" |
22.0 |
2-1/2" |
3-1/2" |
1" |
1/2 x 1/2" |
20.0 |
2-3/4" |
4" |
1-1/8" |
1/2 x 1/2" |
34.0 |
3" |
4-1/4" |
1-1/8" |
1/2 x 1/2" |
36.0 |
