Mechanical
& Drive
Gears
These gears have
a 'plain bore', no keyway, no set screws, they are meant for you
to
bore out yourself and broach in your own keyway. Pricing is per
gear, not in sets.

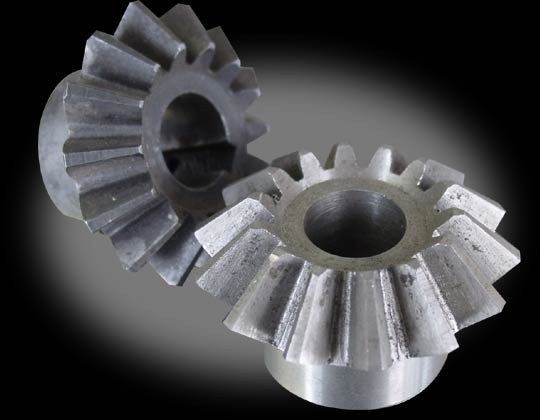

Miter
gears are an awesome way to transmit your rotational force 90 degrees
from your motor.

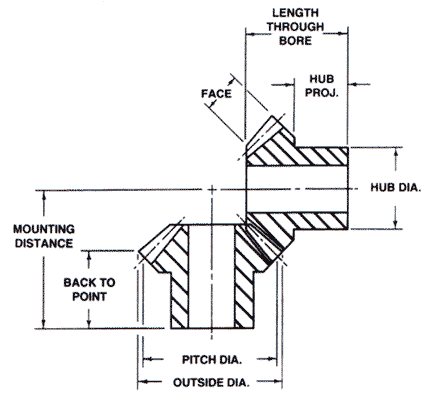

Click on the above drawing to see what each of the measurements below
means.
16
Pitch Steel Miter Gears - 20° Pressure Angle |
#
of Teeth |
Face |
Pitch
Dia. |
Mount
Dist. |
Hub
Dia. |
Thru
Length |
Stock
Bore |
Max
Bore |
Approx.
Weight (lb) |
16 |
.22" |
1.000" |
1.062" |
.75" |
.75" |
.375" |
.375" |
.06 |
20 |
.27" |
1.250" |
1.250" |
1.0" |
.84" |
.437" |
.500" |
.15 |
24 |
.31" |
1.500" |
1.375" |
1.25" |
.87" |
.500" |
.687" |
.25 |
12
Pitch Steel Miter Gears - 20° Pressure Angle |
#
of Teeth |
Face |
Pitch
Dia. |
Mount
Dist. |
Hub
Dia. |
Thru
Length |
Stock
Bore |
Max
Bore |
Approx.
Weight (lb) |
15 |
.27" |
1.250" |
1.250" |
1.00" |
.85" |
.500" |
.500" |
.15 |
18 |
.32" |
1.500" |
1.500" |
1.25" |
1.01" |
.500" (1/2") |
.687" |
.25 |
18 |
.32" |
1.500" |
1.500" |
1.25" |
1.01" |
.625" (5/8") |
.687" |
.23 |
21 |
.39" |
1.750" |
1.750" |
1.37" |
1.18" |
.500" (1/2") |
.812" |
.40 |
21 |
.39" |
1.750" |
1.750" |
1.37" |
1.18" |
.625" (5/8") |
.812" |
.35 |
21 |
.39" |
1.750" |
1.750" |
1.37" |
1.18" |
.750" (3/4") |
.812" |
.30 |
24 |
.43" |
2.000" |
1.875" |
1.50" |
1.21"` |
.500" |
.875" |
.60 |
30 |
.54" |
2.500" |
2.312" |
1.75" |
1.48" |
.625" |
1.00" |
1.20 |
10
Pitch Steel Miter Gears - 20° Pressure Angle |
#
of Teeth |
Face |
Pitch
Dia. |
Mount
Dist. |
Hub
Dia. |
Thru
Length |
Stock
Bore |
Max
Bore |
Approx.
Weight (lb) |
20 |
.44" |
2.000" |
2.000" |
1.62" |
1.35" |
.500" (1/2") |
.875" |
.60 |
20 |
.44" |
2.000" |
2.000" |
1.62" |
1.35" |
.625" (5/8") |
.875" |
.60 |
20 |
.44" |
2.000" |
2.000" |
1.62" |
1.35" |
.750" (3/4") |
.875" |
.60 |
25 |
.55" |
2.500" |
2.437" |
2.00" |
1.62" |
.750" (3/4") |
1.250" |
1.20 |
25 |
.55" |
2.500" |
2.437" |
2.00" |
1.62" |
.875" (7/8") |
1.250" |
1.10 |
25 |
.55" |
2.500" |
2.437" |
2.00" |
1.62" |
1.00" |
1.250" |
1.00 |
