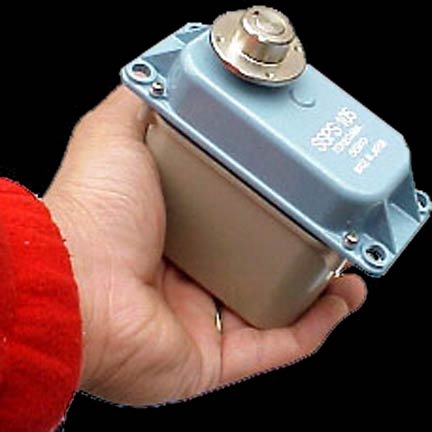

VT-SSPS105S180 Tonagawa SSPS105S180 MONSTER Servo, +-180deg <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">THIS is the big one. It's great for your really BIG projects. This servo has
a Diecast aluminum case with waterproofing down to 11 feet and RFI/EMI shileding.
It's also Futaba Servo Command Pulse compatible.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">We recommend using this unit with a servo saver to avoid
coupling mechanical shocks to the gear train or overloading the motor. A servo
saver can be a calibrated torque coupling spring that yields under the 27 ft/lb
limit of the servo, or any common shaft alignment method that utilizes an elastomer
to transmit torque, or a torque limiting slip clutch, or the best method, a
breakaway clutch that has the added advantage of restoring position like found at <a href="http://www.zero-max.com/products/torque/torquemain.asp" target="_top">zero-max.com</a>.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SPECS at 12VDC: <br>
Length: 5.2&quot;<br>
Width: 2.17&quot;<br>
Height: 4.66&quot;<br>
Weight: 27.5 ounces<br>
Minimum Voltage: 9V<br>
Maximum Voltage: 14V<br>
Quescient A: 0.29<br>
Maximum Amp: 9 <br>
Sec. for 90deg: 0.9<br>
Stall Torque: 27 ft./lbs.<br>
Degree Travel: +-180deg</font></p>
<p><font color="#ff0000" size="2" face="Arial, Helvetica, sans-serif">Please be aware this item typically has a one week lead time.</font></p>
