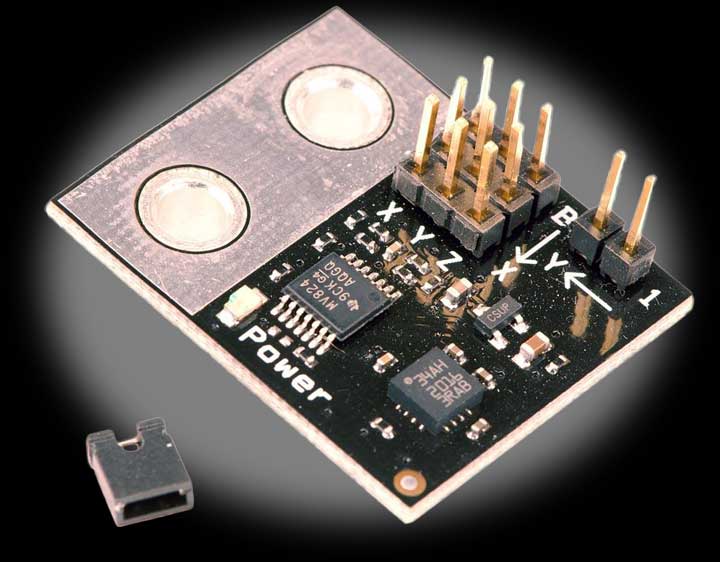

VEX-276-2332 VEX Robotics Analog Accelerometer <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The VEX Accelerometer measures accelerations on three axis simultaneously. By measuring the acceleration of the robot, one can calculate the velocity of the robot, and more importantly the distance this robot has travelled. Accelerometers are also great for detecting collisions and determining if the robot is stopped or moving.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The LIS344ALH capacitive micromachined accelerometer features signal conditioning, a 1-pole low pass filter, temperature compensation and g Select which allows for the selection among 2 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Three Axis Accelerometer.<br />
Selectable sensitivity via jumper: ±2g and ±6g.<br />
0-5V analog output (one for each axis).<br />
Uses the LIS344ALH chip.<br />
LED indicated power and proper connection.<br />
Mounts directly to VEX.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Inputs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
The sensor will measure acceleration in both directions along each axis<br />
Black: Ground<br />
Red +5</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Function</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Sensor Type: 3-Axis Acceleration<br />
Sensor: LIS344ALH chip<br />
Sensitivity: +/-2g and +/-6g</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Outputs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
0.100 spaces pins (3 rows)<br />
Connect to one analog input per axis (cables not included)<br />
White: Output Signal</font></p>
