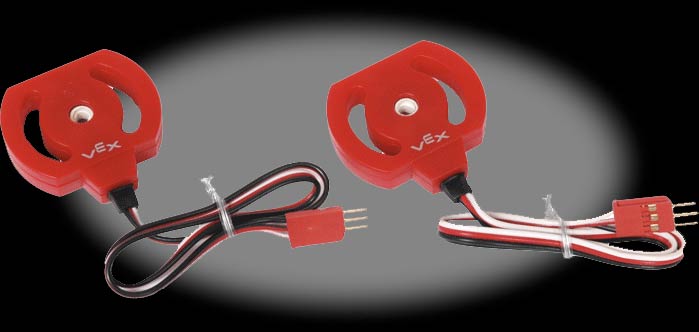

VEX-276-2216 VEX Potentiometer Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With the Potentiometer you can determine both position and direction of rotation. Use this sensor to get an analog measurement of angular position. This measurement can help to understand the position of robot arms, or other mechanisms. A Programming Kit is needed to change the program in the VEX Controller to use the Potentiometer . Includes (2) units.</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Technical
Info</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sensor Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Potentiometer</font>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-3/4 x 1-1/2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.04 lbs. per sensor </font>
</tr><tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/8 in. square </font>
</tr><tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wiring</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Black - ground; Red - (+) power; White - control signal </font>
</tr>
</table>
<p>&nbsp;</p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">List
of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Quantity</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Description</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Potentiometer</font>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-32 3.8in. Screw </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Keps Nut</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Instructions</font></td>
</tr>
</table>
