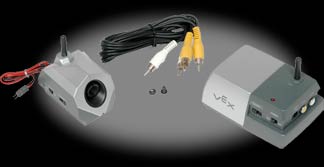

VEX-276-2211 VEX Color Camera Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">See through your robot's eyes with the wireless Vex Color Camera Kit. Mount the
Camera on your robot and connect the Receiver to any television to see and
hear from your robot's point-of-view via the 2.4 GHz camera link. Provides
a color picture, and audio necessary for a spy-bot mission. Can be used with
Vex Robotics Design Starter Kit or VEXplorer controllers. This is the same
camera included in the Vex Robotics VEXplorer.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Mount the camera to any robot<br>
Receive live picture and audio on any TV<br>
Color picture<br>
Four different selectable channels<br>
Adjustable camera focus<br>
Same as the VEXplorer Color Camera</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Vex
Robotics</font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical
Information</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating
Range</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150
foot - max, clear line of sight</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera
frequency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4
GHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera
Battery Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No
batteries required, power is supplied from a Vex Controller</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver
Battery Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4
AA-batteries required (not included)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera
Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.9
in. x 1.8 in. x 3.0 in. (LxWxH)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.0 in. x 2.8 in. x 2.9 in. (LxWxH)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.15 lbs.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.25 lbs.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera Wiring</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Black - ground; Red - +voltage</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver
Wiring</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RCA
Cable, Yellow for video / White for audio</font></td>
</tr>
</table>
<p></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List
of Contents -- Quantity</font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Description</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera
Unit</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera
Receiver</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RCA
Cable (6 foot)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-32
1/4&quot; Screws</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Instructions</font></td>
</tr>
</table>
