VEX-276-2192 VEXnet Joystick <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The VEXnet Joystick allows a human operator to control a robot in real-time using the innovative VEXnet 802.11 Wireless link. The joystick has two 2-axis analog joysticks, 4 trigger buttons and two 4-button directional pads. It also has a 3-Axis Accelerometer that provides X-Y tilt outputs, X-Y-Z acceleration and a shake output. This allows you to control an arm or drive system by changing the orientation of the joystick (tilting, turning or shaking). Just plug a VEXnet USB Adapter Key into the port on the back and enjoy the ultimate in robot control.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> <font color="cccccc">Features</font><br />
Wireless robot control using VEXnet technology.<br />
Only compatible with the VEX Cortex Microcontroller.
<br />
Link (2) joysticks together with (1) VEXnet USB Adapter Key.<br />
When using multiple drivers to control a single robot, they must both be using the same type of transmitter -- the VEXnet Joystick and the 75MHz transmitter cannot be mixed.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">User Inputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(2) X-Y Analog Joysticks<br />
(8) Top Buttons<br />
(4) Back Buttons<br />
(1) 3-Axis Accelerometer</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ports</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> (1) Competition Port<br />
(1) Partner Port (for connection to another VEXnet Joystick)<br />
(1) Program Port (for wireless programming with the VEX Cortex Micro Controller)
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Batteries</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 AAA (not included) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.5 x 4.3 x 2.2in. </font></td>
</tr>
</table>

VEXnet Joystick
The VEXnet Joystick is the next generation of robot control for VEX Robots with the Cortex Micro Controller.

$149.99
Robot MarketPlace - VEXnet Joystick
CLOSE X
Loading Image...

Robot Kits
    VEX Control


Click photo to enlarge.

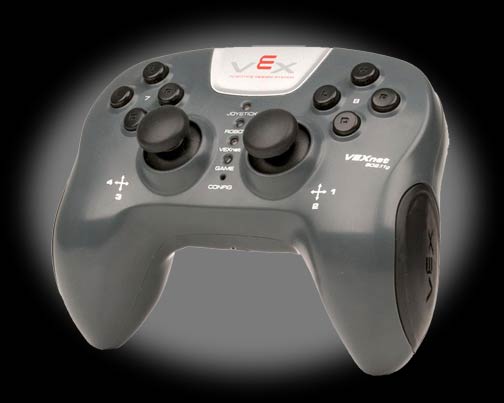

VEXnet Joystick
Part# VEX-276-2192




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Other Documentation
Reviews & Comments

The VEXnet Joystick allows a human operator to control a robot in real-time using the innovative VEXnet 802.11 Wireless link. The joystick has two 2-axis analog joysticks, 4 trigger buttons and two 4-button directional pads. It also has a 3-Axis Accelerometer that provides X-Y tilt outputs, X-Y-Z acceleration and a shake output. This allows you to control an arm or drive system by changing the orientation of the joystick (tilting, turning or shaking). Just plug a VEXnet USB Adapter Key into the port on the back and enjoy the ultimate in robot control.

Features
Wireless robot control using VEXnet technology.
Only compatible with the VEX Cortex Microcontroller.
Link (2) joysticks together with (1) VEXnet USB Adapter Key.
When using multiple drivers to control a single robot, they must both be using the same type of transmitter -- the VEXnet Joystick and the 75MHz transmitter cannot be mixed.

Specs
User Inputs (2) X-Y Analog Joysticks
(8) Top Buttons
(4) Back Buttons
(1) 3-Axis Accelerometer
Ports (1) Competition Port
(1) Partner Port (for connection to another VEXnet Joystick)
(1) Program Port (for wireless programming with the VEX Cortex Micro Controller)
Batteries 6 AAA (not included)
Size 5.5 x 4.3 x 2.2in.
