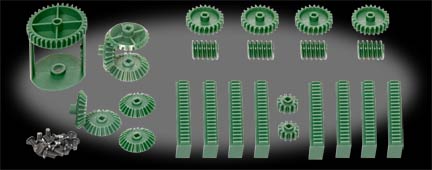

VEX-276-2184 VEX Robotics Advanced Gear Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This kit contains several new gear types designed to help you build advanced
mechanical systems. The rack gear will mount on any Vex metal component, mesh
with any Vex gear to create linear motion systems. The worm gears allow users
to create very high reduction gearing in a small package; these gears will
also resist &quot;back driving&quot; which may be useful in some applications.
The kit comes with several bevel gears which allow designers to transfer motion &quot;around
corners&quot;; you can change the axis of motion by 90 degrees. These bevel
gears can also be used with the differential frame to build a differential.
This can be utilized to create more efficient &quot;car style&quot; drive-trains.
Extra and/or replacement stainless steel screws are available.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">19-Tooth Tack Gear </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 sections, each 2.5 in. long. These can be combined continuously to create a rack of 20 in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Worm Gear </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 sections, each 0.75 in. long.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Differential Frame </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Requires (3) ea. of 24-tooth bevel gear.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Square Hole </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.182 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kit Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.42 lbs. </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">19-tooth rack gear</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12-tooth pinion gear</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Worm gears</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Worm wheel</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Differential frame</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24-tooth bevel gear</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-32 x 1/4 inch Button Head Screws</font></td>
</tr>
</table>
