Robot MarketPlace - VEX Robotics 2-Wire Motor 393

The 2 Wire Motor 393 provides 60% more output power than the standard motor, which allows for more powerful mechanisms and drive bases.

Features
Strong, steel internal gears
No clutches needed
Shaft coupler (included) replaces the clutch
2-Wire Motor Ports: Connect directly (Cortex only)
3-Wire Motor Ports: Use with the Motor Controller 29
Can be configured into a "high speed" version
Has 60% more torque than the 3-wire VEX Motor

The 2-Wire Motor 393 does not have an internal motor controller.

Compatibility
All VEX Microcontrollers (V0.5 requires use of a Motor Controller 29)
All VEX Square Shafts 0.125" (3.2mm)
2-Wire Motor Ports
3-Wire Motor Ports (with a Motor Controller 29)

Specs
Free Speed: 100 rpm (As Shipped)/160 rpm (High Speed Option)
Stall Torque: 13.5 in-lbs (As Shipped)/8.4 in-lbs (High Speed Option)
Stall Current: 3.6A
Free Current: 0.15A

All motor specifications are at 7.2 volts. Actual motor specifications are within 20% of the values above.

Kit Contents
(1) VEX 2-Wire Motor 393 Module
(1) Inventor's Guide Insert
(2) 6-32 x 1/4" Screws
(2) 6-32 x 1/2" Screws
(1) Change Gears Set

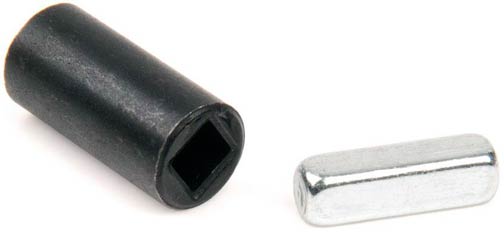

(1) Motor Coupler
(1) Motor Post
