VEX Robotics Gear Kit
Use with the Vex Starter Kit to create multi-drive robots.

$12.99

Robot Kits
VEX Motion

Click photo to enlarge.

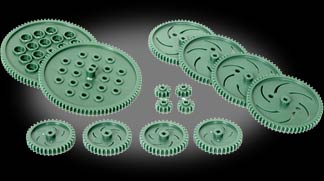

VEX Robotics Gear Kit
Part# VEX-276-2169

Please see this product on the new Robot MarketPlace web site. Click here

Create multi-drive robots with expanded torque and speed options.

Gear kit includes 2 additional 84-tooth gears not available in the Starter Kit #276-2151

Technical Info
Vex Robotics	Description
Gear Type	Spur Gears
Diametrical Pitch	24 DP
Pressure Angle	20 degrees
12-tooth Torque Limit	40 in-lbs
36-tooth Torque Limit	120 in-lbs
60-tooth Torque Limit	200 in-lbs
Face Width	0.25 inch
0.125 in square hole	33 in-lbs
Weight	0.49 lbs

List of Contents
Quantity	Description
4	12-tooth gear (0.5 inch diameter)
4	36-tooth gears (1.5 inch diameter)
4	60-tooth gears (2.5 inch diameter)
2	84-tooth gears (3.5 inch diameter

Inventor's Guide Insert

STEP files for each gear

Click here to add your own review or comment for this product.

10/10/2011

DaneV

I am just getting into robotics, and this kit included everything I needed to run some experiments. I now have a much better understanding of how to use gears to create what I would like to create. over all well worth the money I think :-)

I give it five stars since it does what I needed it to, it was a good cheap gear kit to learn with, and it did not have any blaring flaws

3/30/2011

Stuff

Was above the quality estimated for this product. surpassed my expectations for my RC crane turn table.

11/15/2010

Bob

Robust gear set

Nice gear set. It opens the possibilities when you have plenty of like mesh gears to design with. I've even used the off centered holes for mounting things like the limit switches with great success.

11/19/2009

NoobsRus21900

great for building a gripper arm

I got these greats so I could build a gripper arm and they work great for that. They would also be great for multiple drive systems like 4 wheel drive.
