VEX Robotics Tank Tread Kit
Use with the Vex Robotics Starter kit and transverse tough terrain.

$29.99

Robot Kits
VEX Motion

Click photo to enlarge.

VEX Robotics Tank Tread Kit
Part# VEX-276-2168

Please see this product on the new Robot MarketPlace web site. Click here

Tank treads will enable your robot to explore much more demanding terrain than ordinary wheels. Tank treads distribute a vehicle's weight more evenly than wheels, allowing your robot to move more easily in sand or on soft, spongy surfaces into which wheels would sink and bog down. This increased surface area also gives your robot more traction for hauling heavy loads up an incline. And because each link can grip the surface over which it's traveling, a robot with tank treads can more easily climb obstacles or traverse crevasses in which wheels would get stuck.

Climb over obstacles.
Traverse tough terrain.
Drive through sandy or soft spongy surfaces.
Can be used for a robot conveyor belt.
Every section is a master link, create treads of any length.

Technical Info
Length	2 preassembled chains of 85 links (32.75in.) each, total of 65.5in.
Master Links	170 total, each link is a Master Link
Tread Width	1.5 inches
Tread Weight	12 inches of tread weights 0.532 lbs.
Drive Wheel Weight	0.038 lbs.
Single Bogie Wheel Weight	0.040 lbs.
Double Bogie Wheel Weight	0.078 lbs.
Tread Drive Diameter	Approx. 2.375in.
Material	Delrin plastic
Center Hole Size	0.125in. square

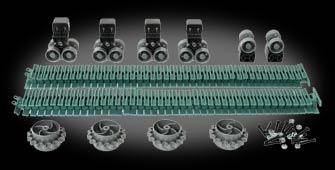

List of Contents
2	Preassembled chains of 85 links (32.75in.)
4	Tank tread drive/idler wheels
4	Double Bogie wheel assemblies
2	Single Bogie wheel assemblies
12	8-32 x 1in. Bogie wheel support screws
12	Keps nuts

Inventor's Guide Insert

STEP files (includes individual links so you can make a big assembly!)

Click here to add your own review or comment for this product.

7/13/2012

Rex Ross

I scratchbuild 1:16 scale military tanks for a hobby. This track set is perfect for my current project. It's well made, easy to change the length, and made of material that is durable.

11/15/2010

Bob

Well engineered, no traction on smooth floors

The tracks and bogies were well made and fit together nicely. Instructions are world class. My only complaint is no friction tread plates are included. For an additional 29$ you can get a few of then bundled with other conveyer hardware. In competetion traction and power is king. I couldn't afford to buy enough friction plates so I used a bead of silicone.

2/19/2010

Chip

Great Fit

I was given a Wall E Clock for christmas that hardly did anything useful. Since then I have hollowed it out and began building it up into a functional robot. These tracks fit perfectly into the design. They are very easy to work with and look great too! The kit comes complete with everything you need.

1/4/2010

ben

cool

works great
used on a survalence robot great fer crawling over stuff

12/7/2009

William Richburg

One of the most useful accessories you could purchase. The extra wide treads with four bogies and upper tread support wheel makes your robot into a real tiger of a robotic tank.

12/1/2009

evan

best deal i've seen!

30 dollars for 4 drive/idler wheels 80 links and bogy wheels. a fairly good deal for this much!

6/30/2009

Danny

Pretty Cool!

The instructions that come are for fitting tank treads generally to any vex robot, i bought these for vexplorer and the instructions are on the Vex Hompage to apply them to vexplorer! they are Surprisingly easy to apply to vexplorer!
