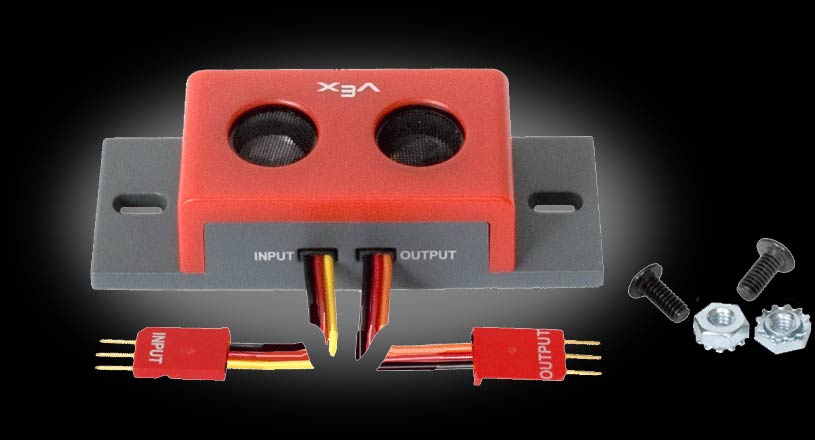

VEX-276-2155 VEX Robotics Ultrasonic Range Finder Kit <p> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">An ultrasonic range finder sensor enables a robot to detect obstacles in its path by utilizing the propagation of high-frequency sound waves. The sensor emits a 40kHz sound wave, which bounces off a reflective surface and returns to the sensor. Then, using the amount of time it takes for the wave to return to the sensor, the distance to the object can be computed. A Programming Kit is needed to change the program
in the Vex Controller.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The sensor can be used to determine distances to objects. It can be used as a tool to determine if any objects are in the robot's path at all. To increase the sensing range, the sensor can be mounted to a servo to allow it to rotate.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Measure distances from 1.5in to 115in.<br />
Avoid obstacles.<br />
Create more autonomous function.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Useable Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5in. - 115in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Frequency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">40 KHz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Function </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Echo response from the ultrasonic sensor </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Wiring </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Black - ground; Red - (+) power; Orange - control signal </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Function </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Start Signal to the Ultrasonic Sensor </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Wiring </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Black - ground; Red - (+) power; Orange - control signal </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.08 lbs. </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ultrasonic Range Finder </font></td>
</tr>
</table>
