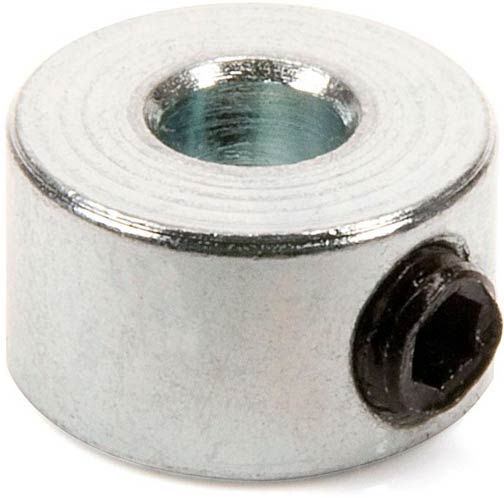

VEX-276-2010 VEX Robotics Shaft Collar, 16-pack <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Collars lock to drive shafts, keeping wheels and gears from sliding along the shaft. Collars fit around Drive Shafts and can be fastened in place using a setscrew. The setscrews used in VEX Shaft Collars are 8-32 size threaded screws; this is the same thread size used in the rest of the kit. There are many applications where it might be beneficial to remove the setscrew from the Shaft Collar and use a normal VEX screw. If a setscrew is lost any other VEX 8-32 screw can be substituted although the additional height of the screw head must be considered!</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Designed specifically for the VEX Drive Shaft<br />
Set screw uses the same Allen Wrench as the 6-32 Motor Screws</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kit Contents </font></td>

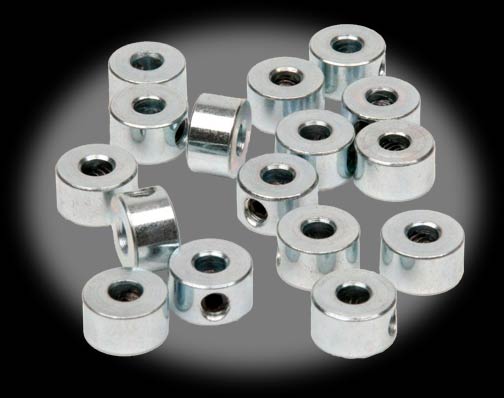

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16 Shaft Collars </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Steel</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Compatibility</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Compatible with all VEX Drive Shafts (0.125" square bars)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Threads: 8-32<br />
Allen: 5/64in.</font></td>
</tr>
</table>
