VEX-276-1341 VEX Robotics Base Plate 30x15, 2-pack <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VEX Base Plates are designed to serve as a foundation for a variety of robotics applications. Use them to create a large stationary robotic arm, or interlock them to build larger manufacturing type systems. These pieces can also be used as large structural pieces in other robotic applications.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hole Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.182 square (Vex standard)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15-holes Wide x 30-holes Long<br />
7.5 x 15 x 0.546in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.4lbs. each </font></td>
</tr>
</table>

VEX Robotics Base Plate 30x15, 2-pack
VEX Base Plates are designed to serve as a foundation for a variety of robotics applications.

$29.99
Robot MarketPlace - VEX Robotics Base Plate 30x15, 2-pack
CLOSE X
Loading Image...

Robot Kits
    VEX Structure


Click photo to enlarge.

VEX Robotics Base Plate 30x15, 2-pack
Part# VEX-276-1341




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Alternate Photos
Other Documentation
Reviews & Comments

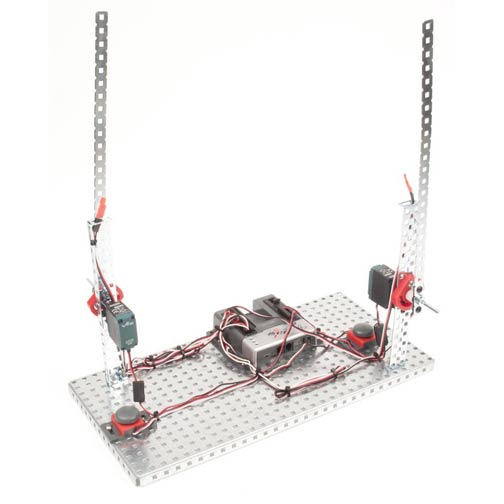

VEX Base Plates are designed to serve as a foundation for a variety of robotics applications. Use them to create a large stationary robotic arm, or interlock them to build larger manufacturing type systems. These pieces can also be used as large structural pieces in other robotic applications.

Technical Specs
Material Type Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)
Hole Size 0.182 square (Vex standard)
Size 15-holes Wide x 30-holes Long
7.5 x 15 x 0.546in.
Weight 1.4lbs. each
