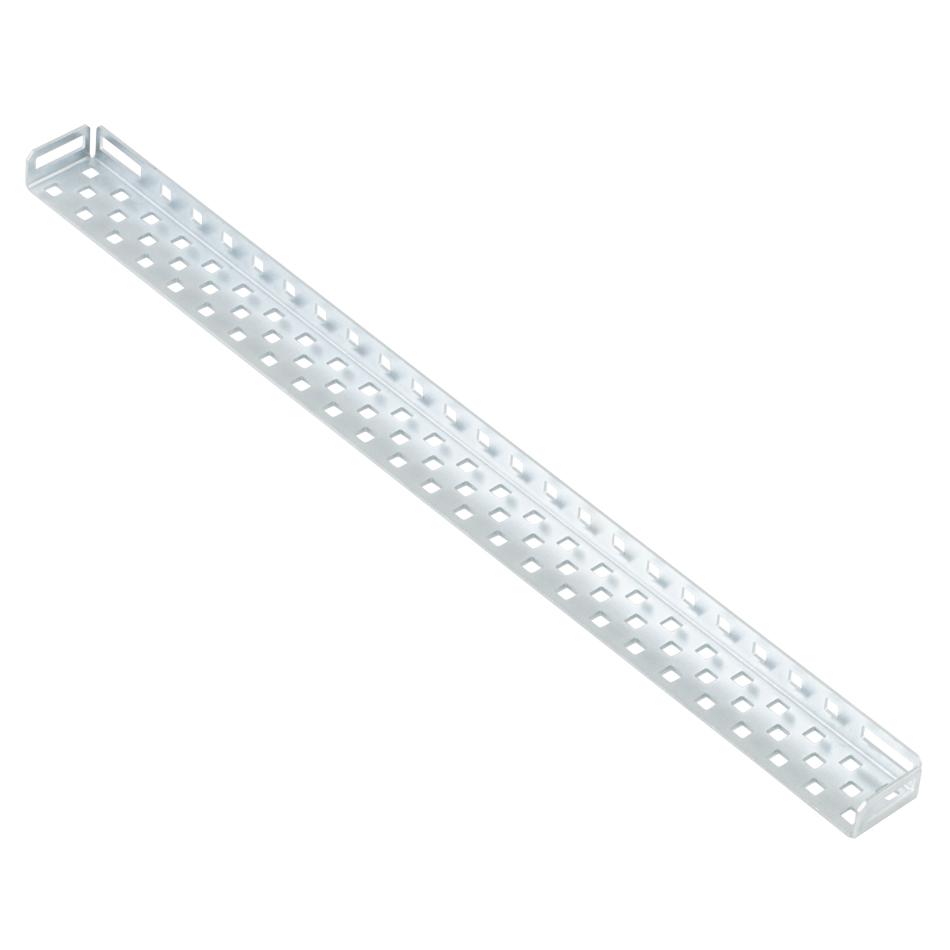

The Chassis Rails are part of the larger VEX Chassis Kits. This rail has holes on 0.500" increments and another row in-between. This part is a versatile angle with one narrow side and one taller side.
Technical Info |
Metal Type |
Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength) |
Metal Thickness |
0.046in. |
Finish |
Zinc Plated |
Hole Size |
0.182 square (VEX standard) |
Weight |
0.187 lbs |
