VEX-275-1118 VEX Robotics Advanced Motion Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">156 popular motion components allows you to create even more advanced robots with more complex mechanisms. Great for any user who wants to build bigger and better robots.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="VEX-276-1209.html">Delrin Bearings</a> - 50 <br />
The Bearing Flat mounts directly on a piece of VEX structure and supports a shaft which runs perpendicular and directly through the structure.</font></font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low friction allows shafts to turn smoothly<br />
Mount with Screws & Nuts or Pop-Rivets</font></p>
<p><font color="00ff66" size="2"><a href="VEX-276-2010.html"><font face="Arial, Helvetica, sans-serif">Shaft Collars</font></a><font face="Arial, Helvetica, sans-serif"> - 32<br />
Collars lock to drive shafts, keeping wheels and gears from sliding along the shaft. Collars fit around Drive Shafts and can be fastened in place using a setscrew. The setscrews used in VEX Shaft Collars are 8-32 size threaded screws; this is the same thread size used in the rest of the kit. There are many applications where it might be beneficial to remove the setscrew from the Shaft Collar and use a normal VEX screw. If a setscrew is lost any other VEX 8-32 screw can be substituted although the additional height of the screw head must be considered!</font></font></font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Designed specifically for the VEX Drive Shaft<br />
Set screw uses the same Allen Wrench as the 6-32 Motor Screws</font></p>
<p><font color="00ff66" size="2"><a href="VEX-SQRBAR.html"><font face="Arial, Helvetica, sans-serif">Drive Shafts</font></a><font face="Arial, Helvetica, sans-serif"> - 18<br />
The square shaft has rounded corners which allow it to spin easily in a round hole, while locking to a square hole. Works with motors, wheels, gears, and bearings.</font></font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="VEX-275-1065.html">Drive Shaft Bar Locks</a> - 16<br />
Metal version of the shaft locking part. Three locations for square shafts. Made from cold rolled steel, 0.046" thick, zinc plated.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Thickness</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.046" (1.17mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Finish</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Zinc Plated</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hole Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(2) 0.182 square (Vex standard)<br />
(3) 0.125 square (Mates with Drive Shafts)</font></td>
</tr>
</table>

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="VEX-276-2018.html">Spacers</a> - 40<br />
A spacer is used to create a space between two objects, often to properly position them. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Eliminate slop on shafts<br />
Add space between metal parts<br />
Plastic and Nylon</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter: 0.500in.<br />
Hole: 0.194in.<br />
Height: 0.125in., 0.190in., 0.250in., 0.330in., 0.375in., and 0.500in.</font></p>

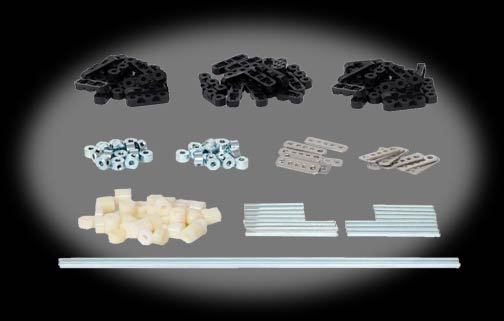

<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Kit Contents</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
(50) Delrin Bearing<br />
(32) Collars<br />
(8) Drive Shaft, Square Bar, 2"<br />
(8) Drive Shaft, Square Bar, 3"<br />
(2) Drive Shaft, Square Bar, 12"<br />
(16) Square Shaft Bar Lock<br />
(10) Spacer, Nylon, 0.125"<br />
(10) Spacer, Nylon, 0.250"<br />
(10) Spacer, Nylon, 0.375"<br />
(10) Spacer, Nylon, 0.500"
</font></p>
